Description

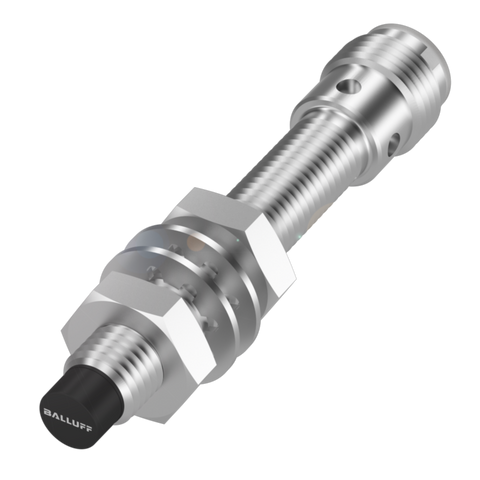

xThis is an inductive proximity sensor with an M8x1 stainless steel housing, designed for non-flush mounting and a sensing range of 6 mm. It provides a PNP normally open switching output, operates from 10...30 VDC, and connects via an M12x1 4-pin male connector. With an IP68 rating and an ambient temperature range of -25...70°C, it is suited to industrial automation applications requiring detection of metallic targets in panels or on machinery exposed to demanding conditions.
Key specifications
- IP rating: IP68
- Operating voltage: 10...30 VDC
- Connection: Connector, M12x1-Male, 4-pin
- Output: PNP normally open (NO)
- Operating temperature: -25...70 °C
- Dimensions: Ø 8 x 63 mm
Specifications
x| dimension | Ø 8 x 63 mm |
| style_housing | M8x1 |
| installation | non-flush |
| range | 6 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 1200 Hz |
| housing_material | Stainless steel |
| material_sensing | PBT |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP68 |
| approval_conformity | CEUKCAcULusWEEE |
Documents
