Description

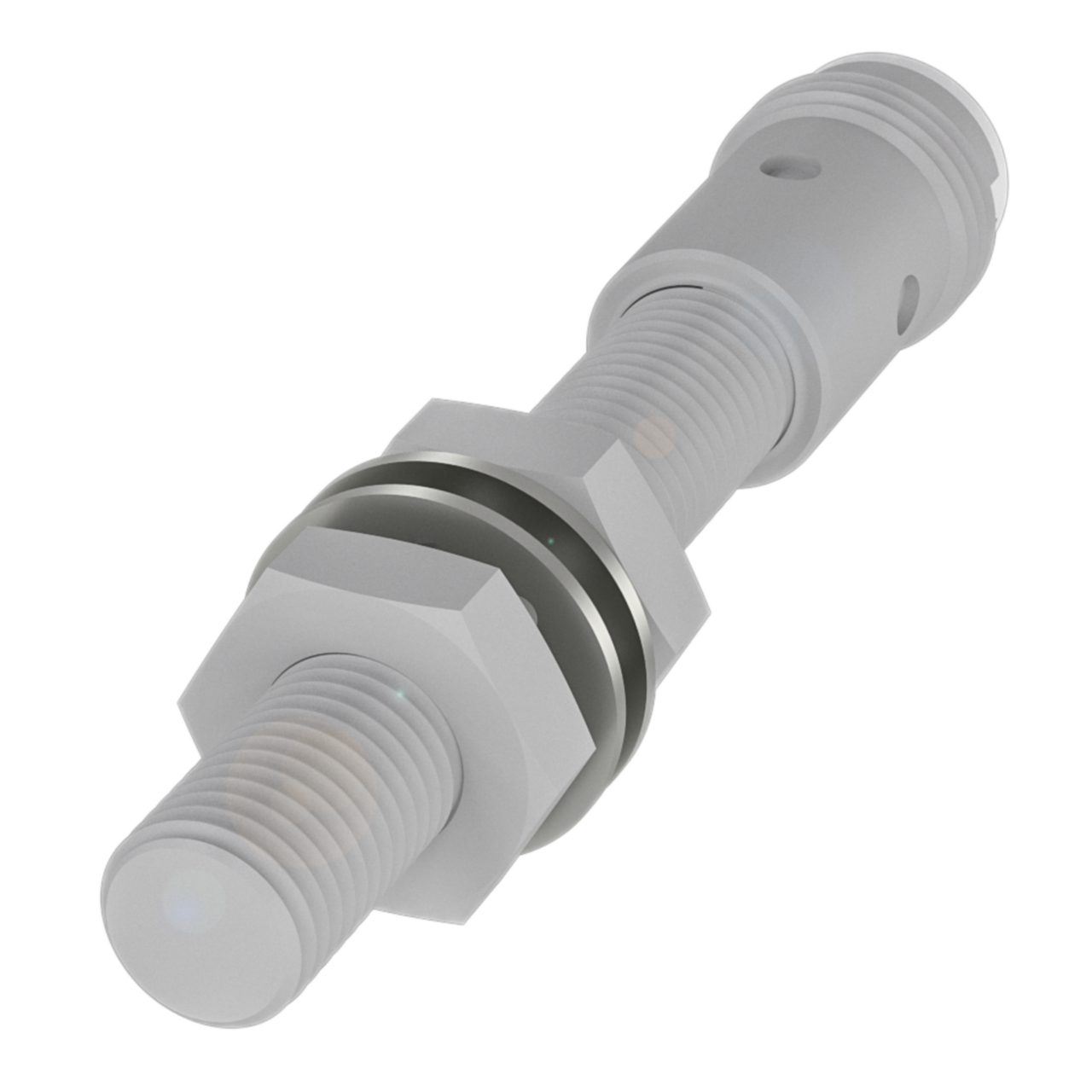

xThis M8x1 inductive sensor from Balluff detects the presence of metal targets and provides a PNP normally open switching output, with an operating voltage range of 10-30 VDC and a switching frequency of 750 Hz. Its stainless steel housing and sensing surface, combined with a PTFE coating and an IP67 rating, suit it to flush mounting in environments where contamination or washdown may occur. Connection is made via an M12x1, 3-pin, A-coded male connector, allowing straightforward integration into panels and machine wiring using standard cordsets.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PTFE coated / Stainless steel |
| Material: Sensing Surface / Contacts | Stainless steel |
| Size | M8x1 |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 6 Nm ±10 % |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 750 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
