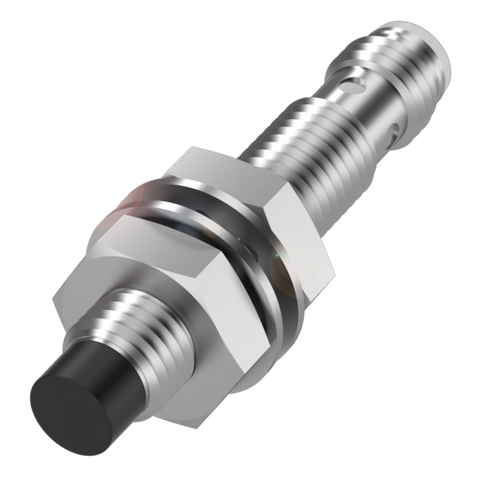

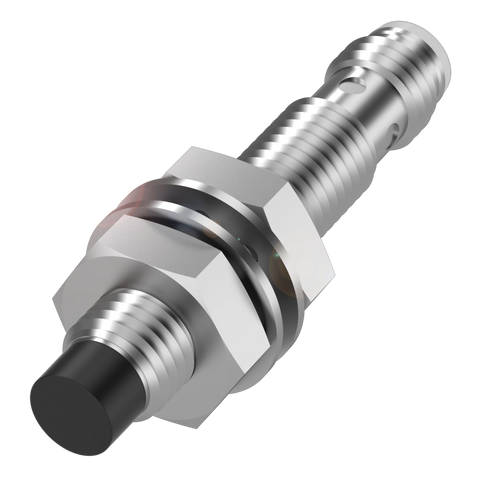

Balluff BES M08EH1-POC60F-S49G Inductive sensor, PNP, NC

Dimension Ø 8 x 60 mm Style Housing M8x1 Installation non-flush Range 6 mm Switching output PNP Normally closed (NC)
Vendor: Balluff
SKU: BES0550
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Dimension
Ø 8 x 60 mm
Style Housing
M8x1
Installation
non-flush
Range
6 mm
Switching output
PNP Normally closed (NC)
Specifications
Specifications
x
dimensionØ 8 x 60 mm
style_housingM8x1
installationnon-flush
range6 mm
switching_outputPNP normally closed (NC)
switching_frequency1200 Hz
housing_materialStainless steel
material_sensingPBT
connectionConnector, M8x1-Male, 3-pin
operating_voltage10...30 VDC
ambient_temperature-25...70 °C
ip_ratingIP68
approval_conformityCEUKCAcULusWEEE
Documents
Documents
x
Download Datasheet
