Description

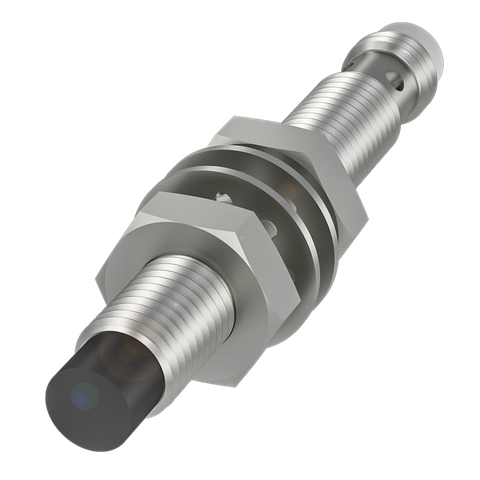

xThis compact inductive sensor features a 4 mm sensing range, M8 housing, and a normally open PNP output. It operates on a 10-30 V DC supply and is designed for use in industrial automation applications, offering reliable detection in harsh environments.
Specifications
x| IP Rating / Detailed | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 60mm |
| Part Diameter (mm) | 8mm |
| Connection Type | M8x1 / Male / 3-pin |
| Tightening Torque | 8 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 4000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
