Description

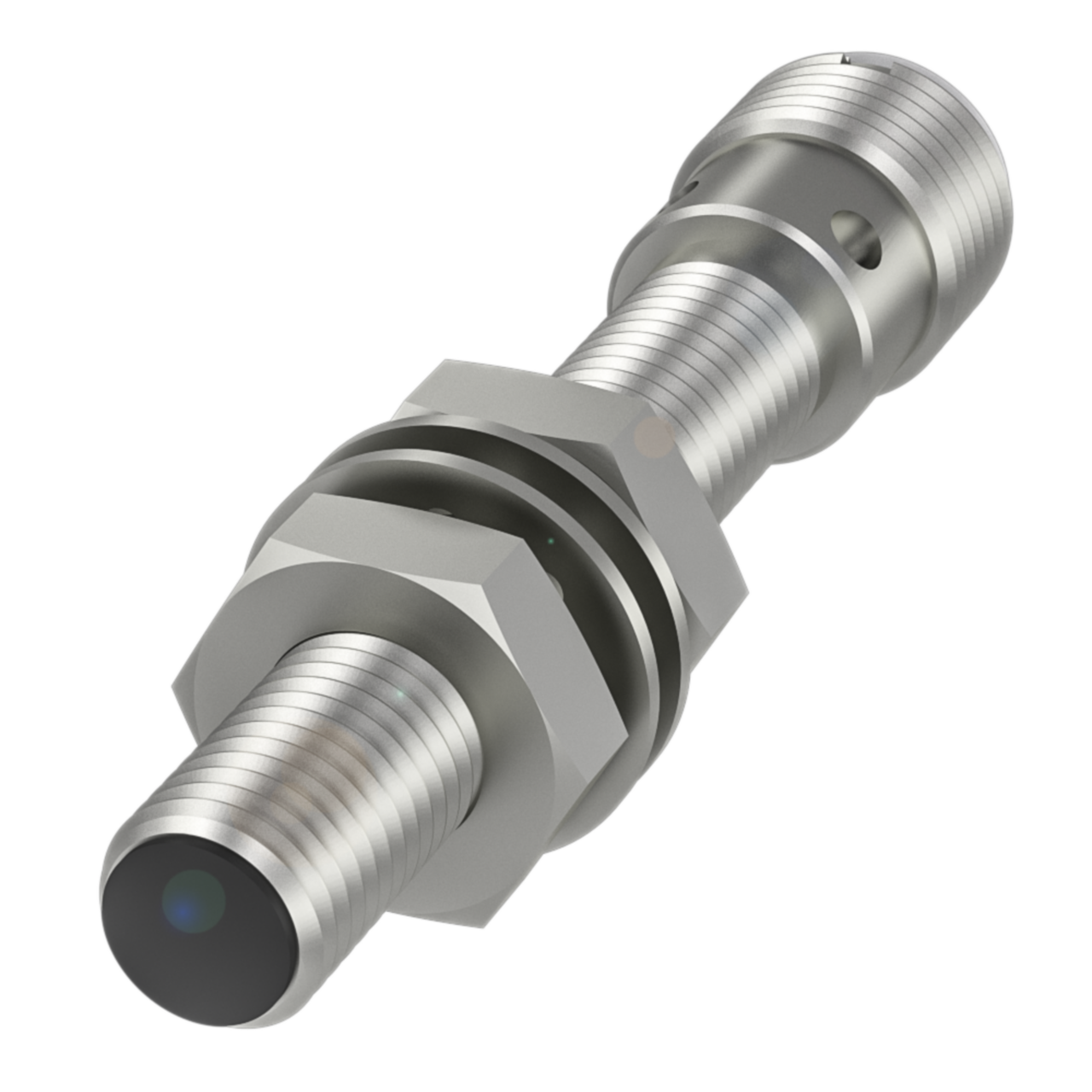

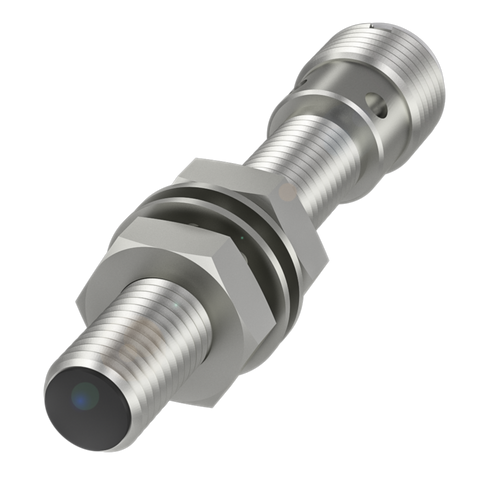

xThis is an inductive proximity sensor with a stainless steel M8x1 housing, designed for flush mounting where space is limited. It detects metal targets within a 1.5 mm sensing range and provides a PNP normally closed output, connecting via an M12x1 4-pin male connector. Operating from 10...30 VDC with an IP68 rating, it suits use in industrial environments across an ambient temperature range of -25...70°C.
Key specifications
- IP rating: IP68
- Operating voltage: 10...30 VDC
- Connection: Connector, M12x1-Male, 4-pin
- Output: PNP normally closed (NC)
- Operating temperature: -25...70 °C
- Dimensions: Ø 8 x 58 mm
Specifications
x| dimension | Ø 8 x 58 mm |
| style_housing | M8x1 |
| installation | for flush mounting |
| range | 1.5 mm |
| switching_output | PNP normally closed (NC) |
| switching_frequency | 3000 Hz |
| housing_material | Stainless steel |
| material_sensing | PBT |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP68 |
| approval_conformity | CEUKCAcULusWEEE |
