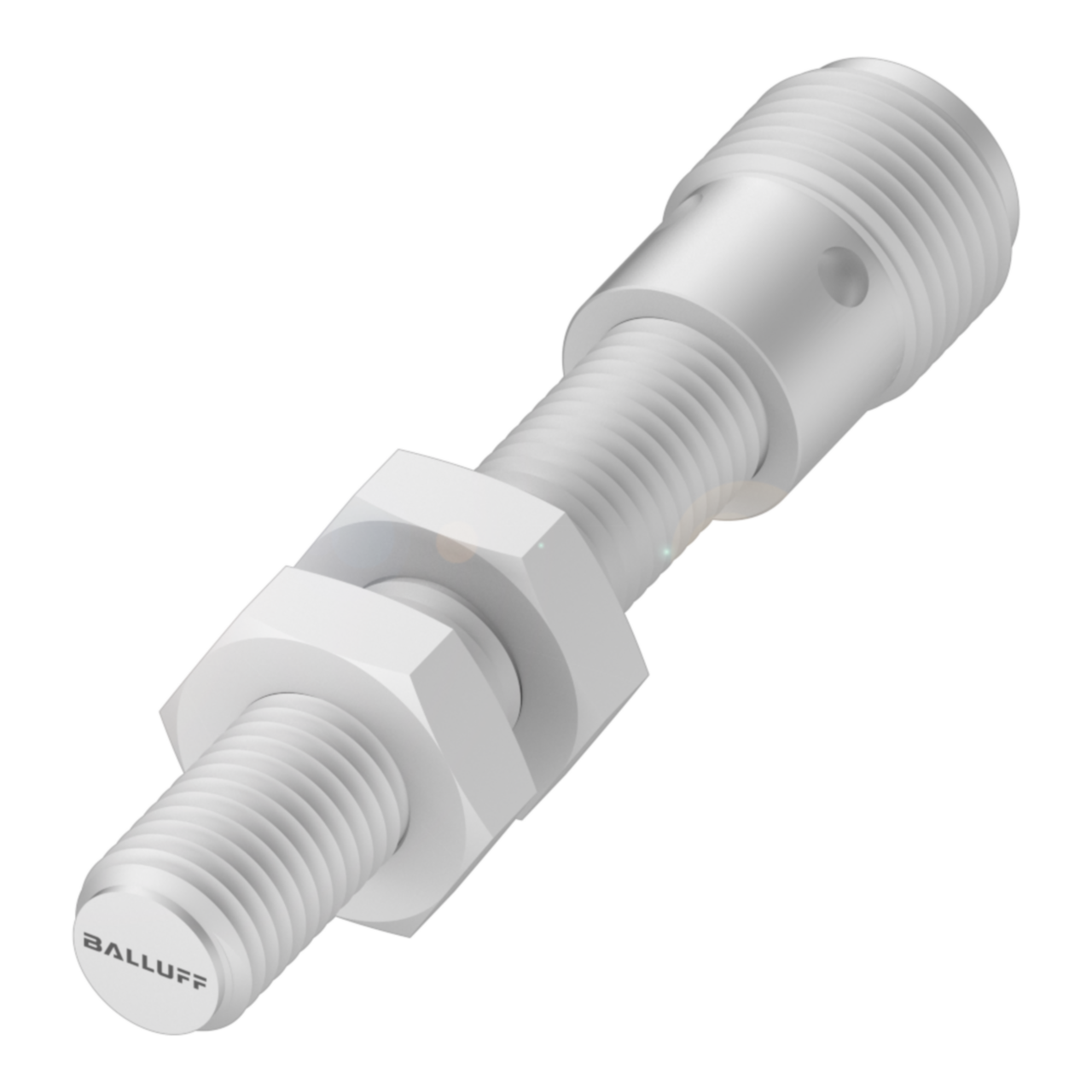

xThe BES M08EG1-PSC15A-S04G-W is an inductive proximity sensor with a PNP normally open output, designed for detecting metallic targets in automation and machine-building applications. Its M08 housing is PTFE coated stainless steel with a PBT/PTFE sensing surface, giving an IP67 rating suited to washdown or harsh industrial environments, and it supports flush mounting for installation in confined spaces. Electrical connection is via an M12x1 4-pin A-coded male connector, with an operating voltage range of 10-30 VDC and a switching frequency of 2000 Hz.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 VDC
- Connection: M12x1 / Male / 4-pin / A-code
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE / WEE |
| Material: Housing / Grip | PTFE coated / Stainless steel |
| Material: Sensing Surface / Contacts | PBT / PTFE |
| Connection Type | M12x1 / Male / 4-pin / A-code |
| Tightening Torque | 10 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 2000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 VDC |
| Mounting Type | Flush mounting |
| Rated Operating Current | 150 mA |
