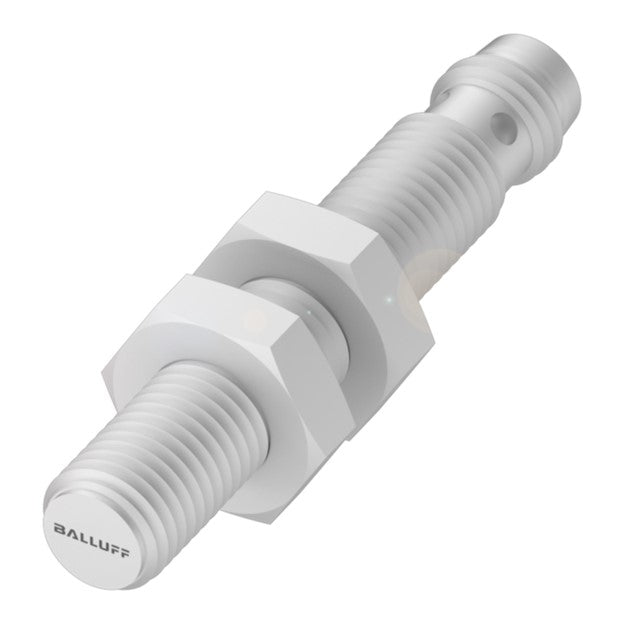

Balluff BES M08EG-PSC15A-S49G-W Inductive sensor, PNP, NO Part number BES02YR

The BES M08EG-PSC15A-S49G-W is an inductive proximity sensor with an M8 stainless steel housing and PTFE-coated grip, rated IP67 for use in washdown or contaminated industrial environments. It provides a PNP normally open output with a rated operating distance of 1.5mm and a switching frequency of 2000 Hz, suitable for flush mounting where space is limited. The sensor operates from 10 to 30 VDC and connects via an M8x1, 3-pin male connector, making it suitable for detecting metallic targets in compact automation and machine-building applications.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
