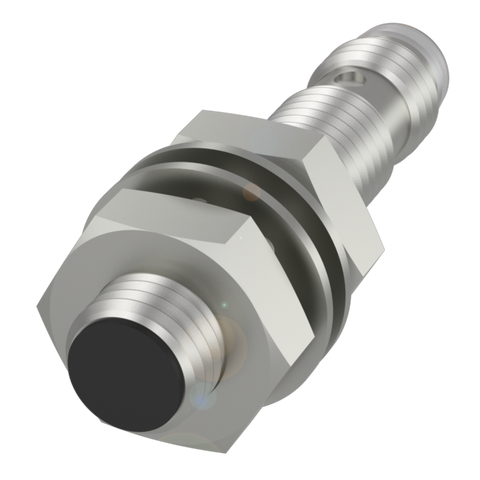

Balluff BES M08EE-PSC20B-S49G-003 Inductive sensor, PNP, NO
Balluff BES M08EE-PSC20B-S49G-003 Inductive sensor, PNP, NO

Balluff BES M08EE-PSC20B-S49G-003 Inductive sensor, PNP, NO

This inductive sensor is designed for detecting metal objects in automation systems. It operates at 24V DC with a switching current of up to 200mA. The sensor offers PNP normally open (NO) output and is IP68 rated, ensuring reliability in harsh environments with temperatures ranging from -40°C to 85°C.
Vendor: Balluff
SKU: BES00CK
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 5 left in stock
Description
Description
x

This inductive sensor is designed for detecting metal objects in automation systems. It operates at 24V DC with a switching current of up to 200mA. The sensor offers PNP normally open (NO) output and is IP68 rated, ensuring reliability in harsh environments with temperatures ranging from -40°C to 85°C.

Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationscULus CE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Sensing Surface / ContactsPBT
Part Length (mm)40mm
Part Diameter (mm)8mm
Tightening Torque8 Nm
Rated Operating Distance (mm)2mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
