Description

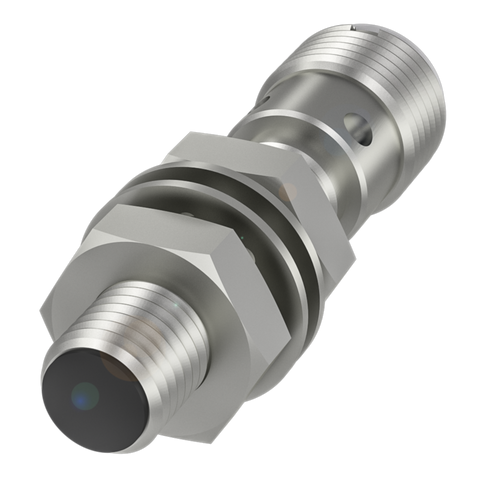

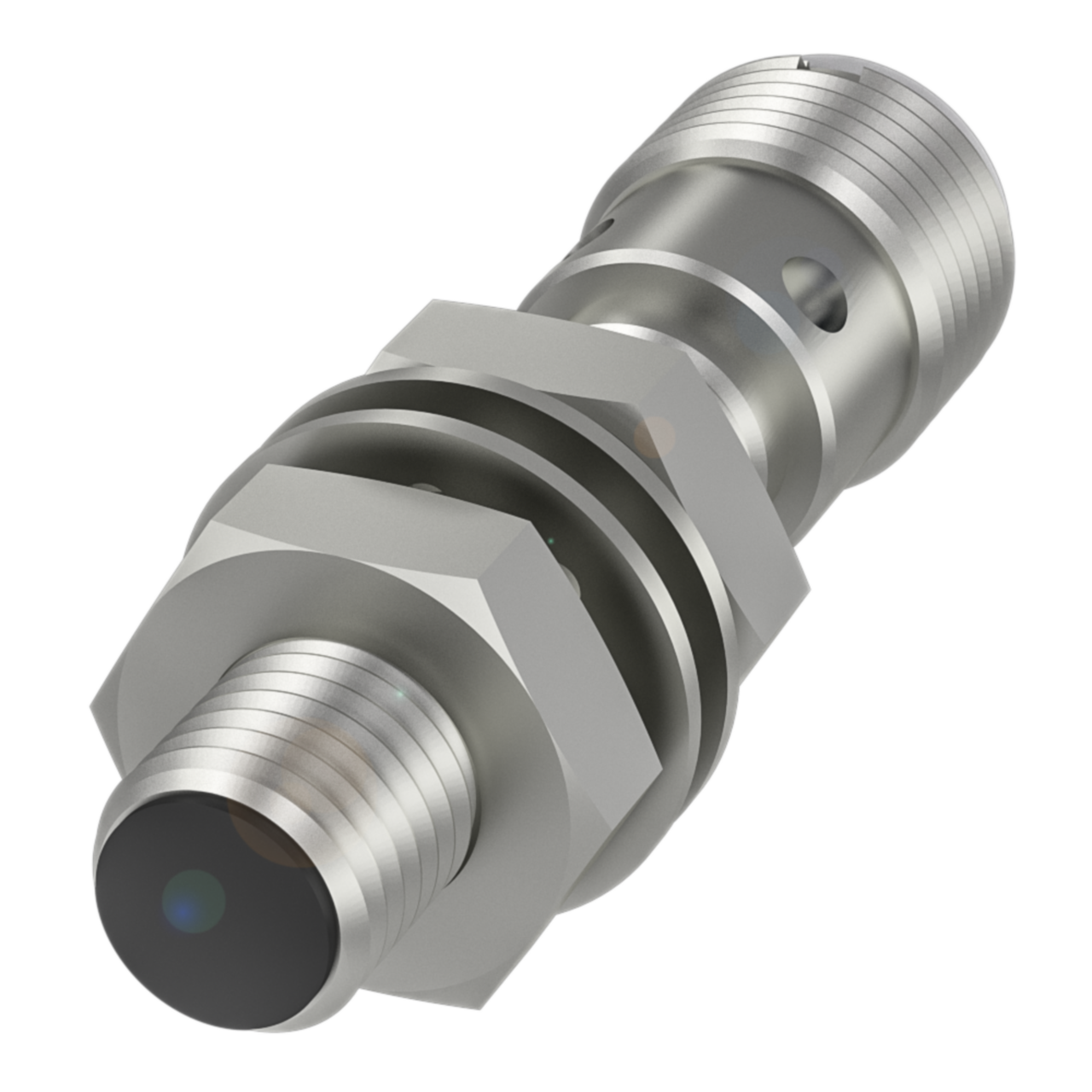

xThe BES M08EE-PSC20B-S04G is an M8 inductive proximity sensor with a PNP normally open output, detecting targets at a rated operating distance of 2mm. Its stainless steel housing and IP68 rating suit flush mounting in harsh industrial environments, while the M12x1 4-pin A-coded connector allows straightforward panel or machine integration. Operating from 10 to 30 VDC with a switching frequency of 1500 Hz, it is suitable for position and presence detection in automation applications requiring fast response and reliable sealing.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | PBT |
| Size | M8x1 |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 8Nm |
| Rated Operating Distance (mm) | 2mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 1500 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
