Description

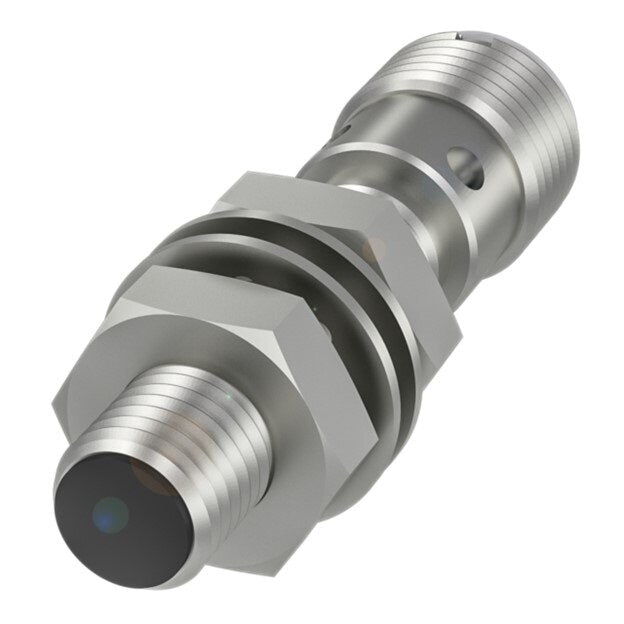

xThis is an inductive proximity sensor with a PNP normally open output, detecting metal targets at a rated operating distance of 2mm. The stainless steel housing with PBT sensing face and IP67 rating suit flush mounting in panels or machinery exposed to washdown or contaminants. It operates from 10 to 30 VDC and connects via an M12x1, 4-pin male A-coded connector, making it suitable for compact automation applications requiring reliable metal-object detection.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 43mm |
| Part Diameter (mm) | 8mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 8 Nm |
| Rated Operating Distance (mm) | 2mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 700 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
