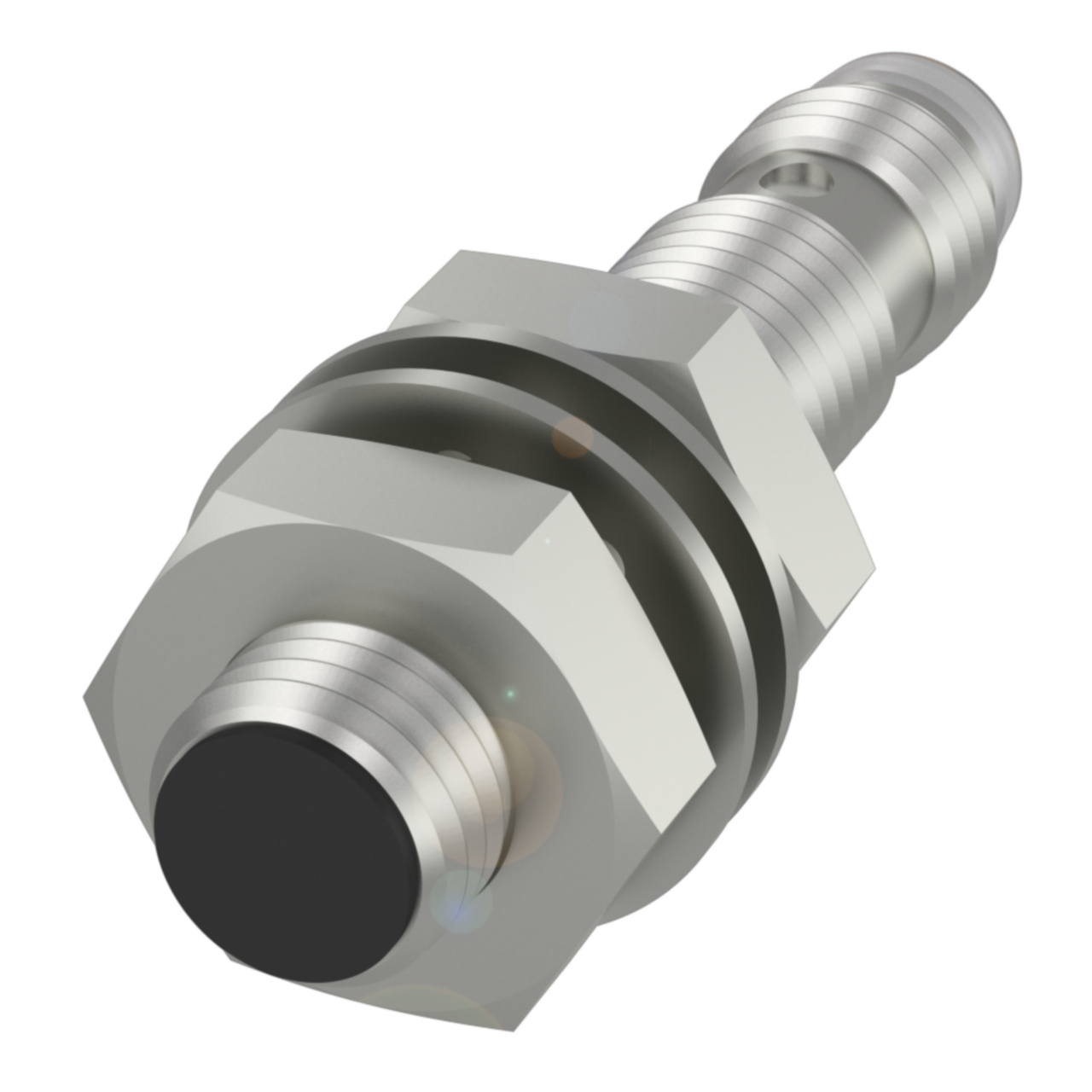

Balluff BES M08EE-PSC15B-S49G-003 Inductive sensor, PNP, NO Part number BES00CJ

This is an inductive proximity sensor with a stainless steel M8x1 housing, designed for flush mounting where space is limited. It detects metal targets at ranges up to 1.5 mm and provides a PNP normally open switching output via a 3-pin M8 male connector, operating from 10 to 30 VDC. With an IP68 rating and an ambient temperature range of -40 to 85 °C, it is suited to harsh industrial environments such as machine building and automated production lines.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Output: PNP normally open (NO)
• Operating temperature: -40...85 °C
• Dimensions: Ø 8 x 40 mm
