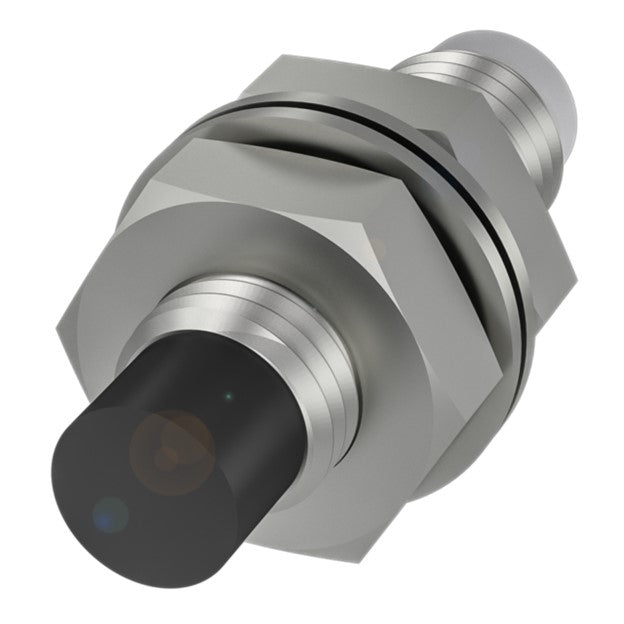

xThe BES M08EB-PSC40F-S49G is an inductive proximity sensor with a PNP normally open output, designed for non-flush mounting in industrial automation applications. It has a stainless steel housing with a PBT sensing surface, an M8x1 three-pin male connector, and a rated operating distance of 4mm, operating on 10-30 VDC. With an IP68 rating and a switching frequency of 4000 Hz, it suits use in environments requiring durable, fast-response position or presence detection.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M8x1 / Male / 3-pin
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 30mm |
| Part Diameter (mm) | 8mm |
| Connection Type | M8x1 / Male / 3-pin |
| Tightening Torque | 8 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 4000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
