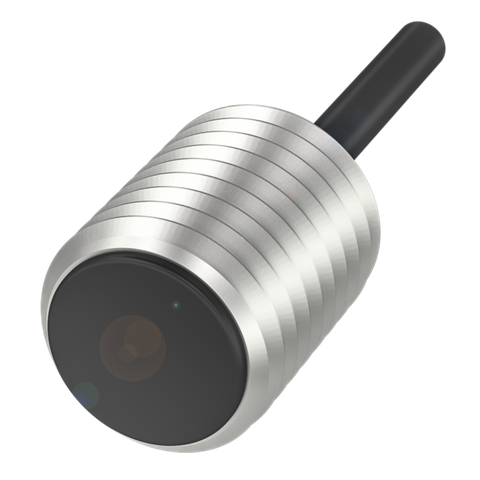

xThe BES M08EA-PSC15B-EP02 is an M8x1 inductive sensor with a PNP normally open output, designed for flush mounting in automation equipment and machine panels. It has a rated operating distance of 1.5mm, an operating voltage range of 10 to 30 VDC, and a switching frequency of 3000 Hz, with a stainless steel housing and IP67 rating suited to industrial environments. The sensor terminates in a 2 000mm cable and is built for detecting metallic targets in confined mounting positions where surface-mounted sensing surfaces must sit level with surrounding material.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Size | M8x1 |
| Cable Length (mm) | 2 000mm |
| Cable Diameter (mm) | 2.1mm |
| Tightening Torque | 4Nm |
| Rated Operating Distance (mm) | 1.5mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 3000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 150 mA |
