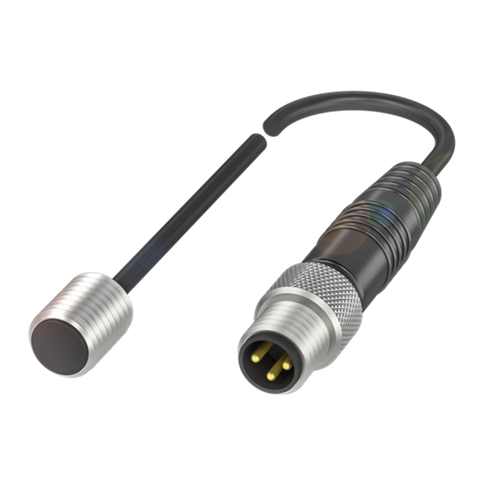

Balluff BES M08EA-PSC15B-EP00,3-GS49 Inductive sensor, PNP, NO
Balluff BES M08EA-PSC15B-EP00,3-GS49 Inductive sensor, PNP, NO

Balluff BES M08EA-PSC15B-EP00,3-GS49 Inductive sensor, PNP, NO

Dimension Ø 8 x 10 mm Style Housing M8x1 Installation for flush mounting Range 1.5 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES0273
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 10 left in stock
Ask an expert
Description
Description
x
Dimension
Ø 8 x 10 mm
Style Housing
M8x1
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsIEC 60947-5-2 / CE UKCA cULus WEEE
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
Part Length (mm)10mm
Cable Length (mm)300mm
Part Height (mm)2.1mm
Part Diameter (mm)8mm
Connection TypeM8x1 / Male / 3-pin / Cable with connector / 0.30 m
Connection StyleM8x1
Tightening Torque4 Nm
Rated Operating Distance (mm)1.5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)3000Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Mounting TypeFlush mounting
Documents
Documents
x
Download Datasheet
