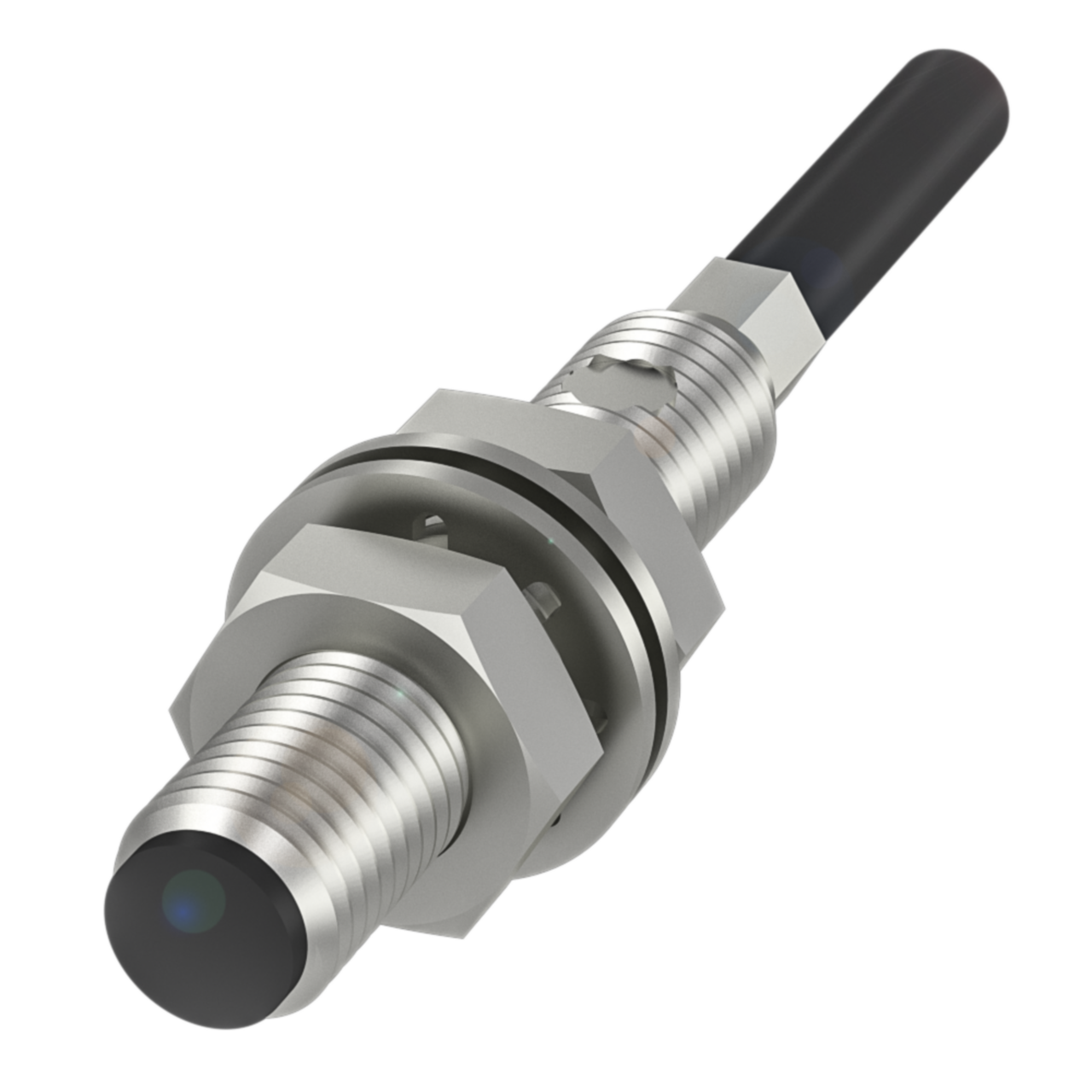

Balluff BES M04EC-PSC10B-EP02 Inductive sensor, PNP, NO Part number BES03Z8

This M4 threaded inductive sensor detects metal targets at ranges up to 1 mm and provides a PNP normally open switching output for connection to PLC or relay inputs. Its stainless steel housing suits flush mounting in confined spaces, with a PUR cable of 2.00 m for direct wiring into a control panel or junction box. Operating from a 10...30 VDC supply and rated IP67, it is suited to machine and automation applications where compact size and resistance to dust and moisture are required.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 4 x 22 mm
