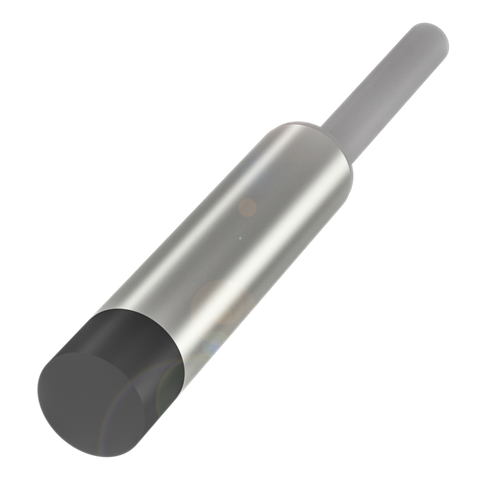

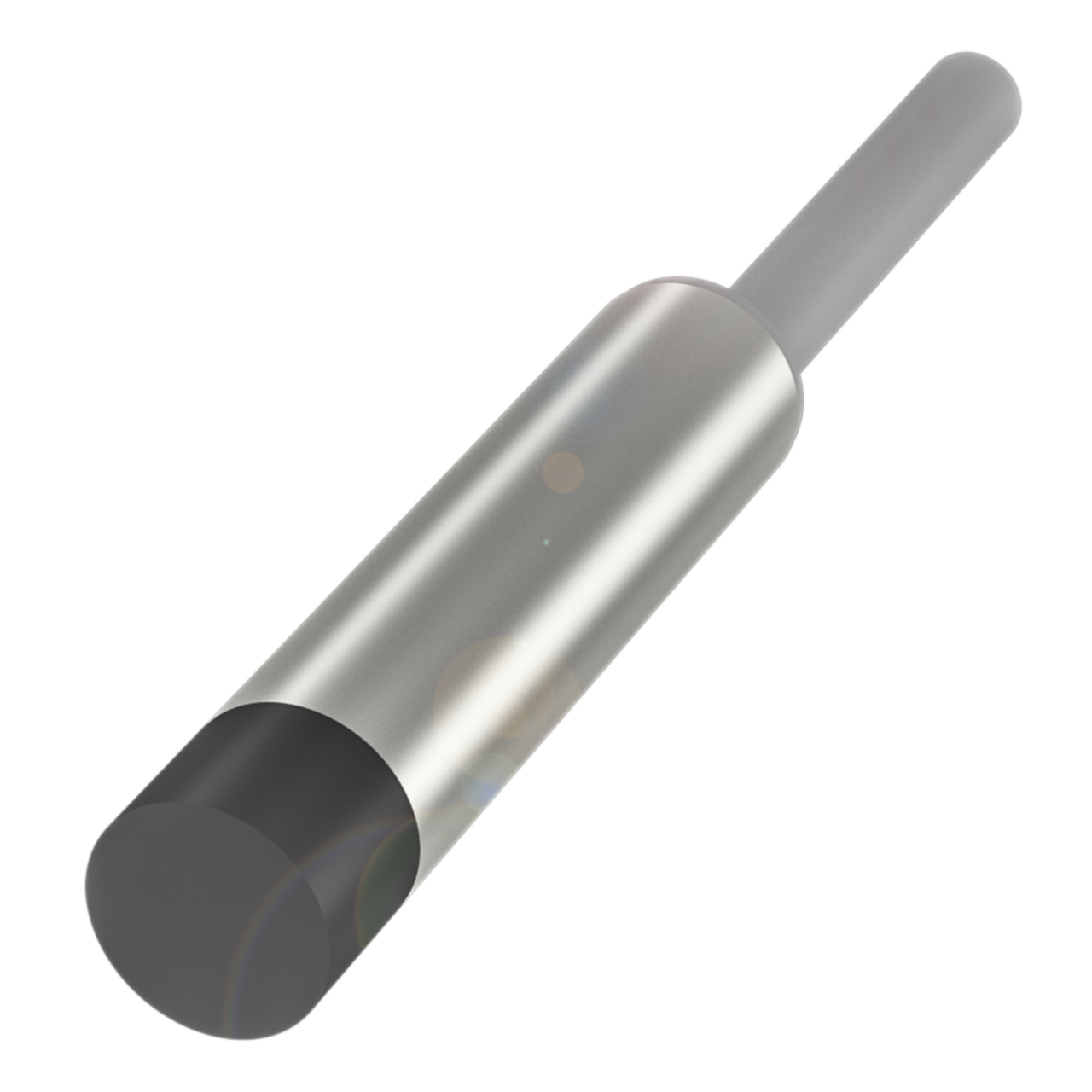

Balluff BES G06ED-PSC40F-BP02 Inductive sensor, PNP, NO Part number BES000E

This is an inductive proximity sensor with a Ø6.5 x 30 mm stainless steel housing, designed for non-flush installation and detecting metal targets at up to 4 mm range. It provides a PNP normally open switching output with a switching frequency of 4000 Hz, operating from a 10...30 VDC supply, and is fitted with a 2.00 m PUR cable for direct connection into the control circuit. With an IP68 rating and an ambient temperature range of -25...70 °C, it suits use in panels and machine applications where washdown or exposure to moisture and dust is expected.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C, Temperature drift max. (% Sr) > 15% valid from 50...70 °C
• Dimensions: Ø 6.5 x 30 mm
