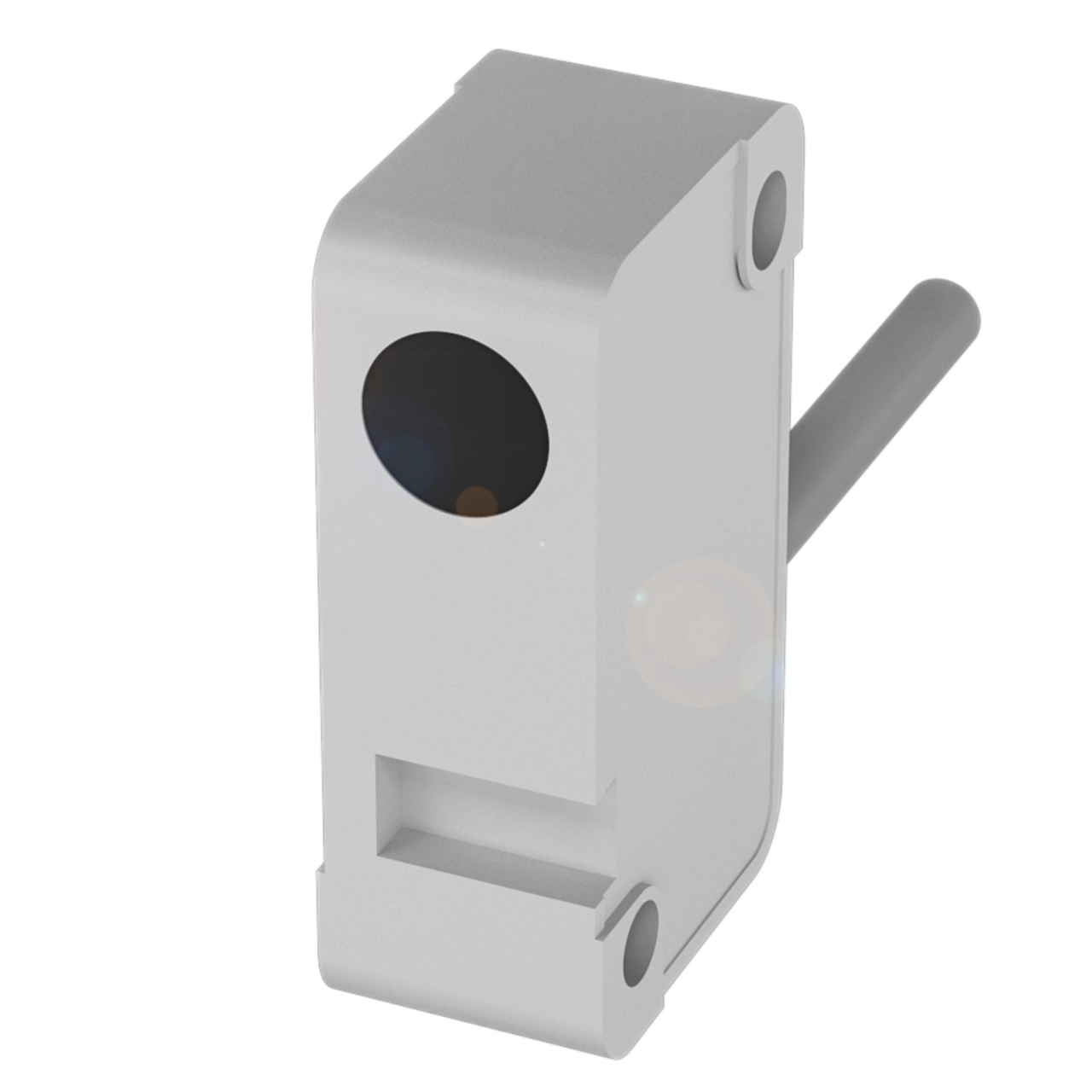

Balluff BES 517-398-NO-C-PU-05 Inductive sensor, PNP, NO Part number BES01N9

This is an inductive proximity sensor with a PNP normally open output, designed for flush mounting in applications requiring detection at a sensing range of 2 mm. The housing measures 30 x 10.5 x 16.5 mm and is constructed from PBT, GF20, with an IP65 rating suited to industrial environments across an operating temperature range of -25 to 70 °C. It connects via a 5 m PUR cable and operates from a 10...30 VDC supply, with a switching frequency of 2500 Hz. Typical use is in automation and machine-building applications where compact, flush-mountable position or presence sensing is required.

Key specifications

• IP rating: IP65
• Operating voltage: 10...30 VDC
• Connection: Cable, 5.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 30 x 10.5 x 16.5 mm
