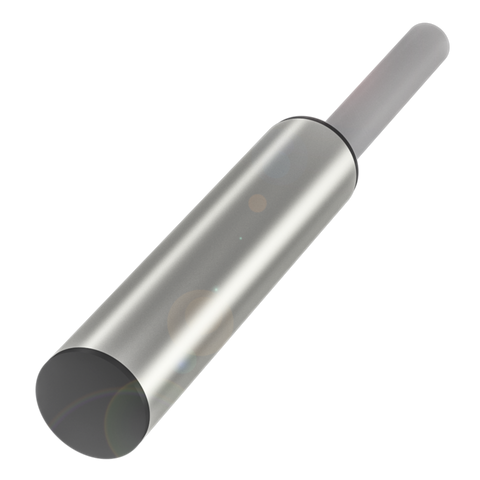

Balluff Inductive standard sensor, PNP, NO, D6.5, flush, 3m PVC Part number BES00Z3

This inductive sensor detects the presence of metal targets without contact, using a flush-mount D6.5 stainless steel housing suited to installation in restricted spaces where the sensor face sits level with surrounding material. It provides a PNP normally open output with a sensing range of 1.5 mm, operates from 10...30 VDC, and switches at up to 5000 Hz. The stainless steel body and IP68 rating suit washdown or contaminated industrial environments, with connection made via an integral 3 m PVC cable.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 3.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -40...85 °C
• Dimensions: Ø 6.5 x 30 mm
