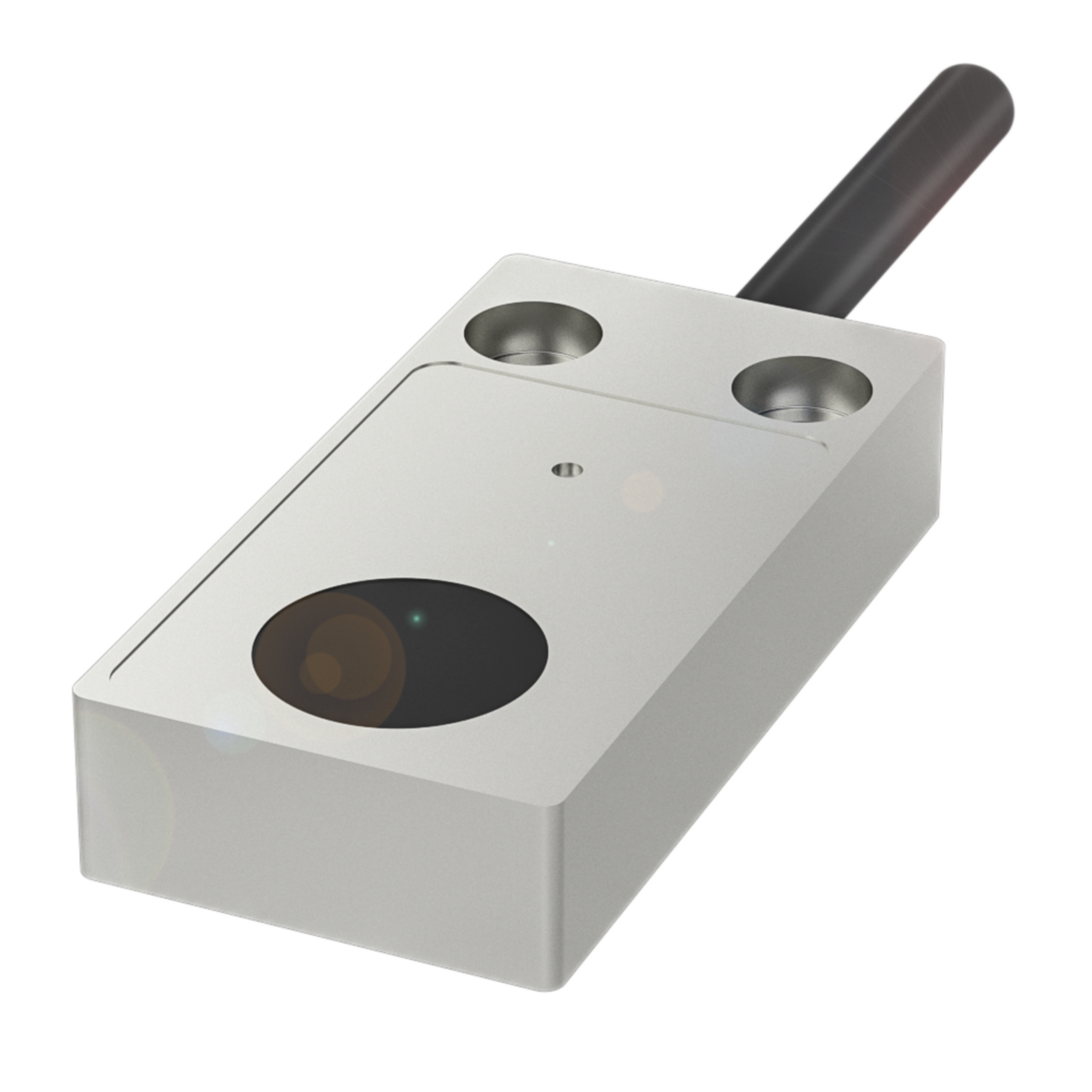

Balluff Inductive standard sensor, PNP, NO, flush, 2m PVC Part number BES01FH

This inductive sensor detects metal targets at a range of 5 mm and provides a PNP normally open output with a switching frequency of 500 Hz. The flush-mount housing measures 50 x 25 x 10 mm and is constructed from die-cast aluminium with a PBT sensing face, rated IP67 for use in demanding industrial environments. It operates from a 10...30 VDC supply across an ambient temperature range of -25...70 °C and is terminated with a 2 m PVC cable. Typical applications include position and presence detection on automated machinery and panels where flush installation is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 50 x 25 x 10 mm
