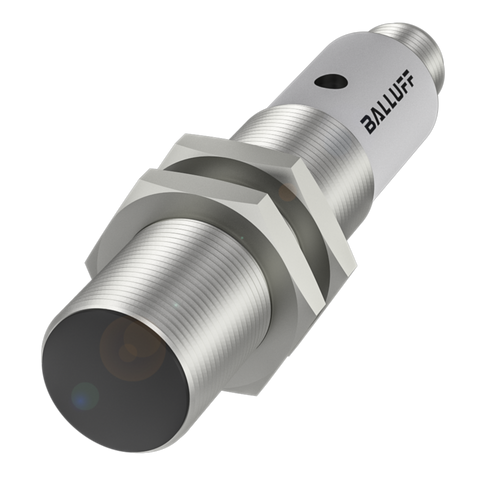

BalluffBES 516-326-S4-C - replaced by BES04T5 Balluff
BalluffBES 516-326-S4-C - replaced by BES04T5 Balluff
BalluffBES 516-326-S4-C - replaced by BES04T5

BalluffBES 516-326-S4-C - replaced by BES04T5

Dimension Ø 18 x 83 mm Style Housing M18x1 Installation for flush mounting Range 5 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES01CW
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 2 left in stock
Description
Description
x
Dimension
Ø 18 x 83 mm
Style Housing
M18x1
Installation
for flush mounting
Range
5 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
dimensionØ 18 x 83 mm
style_housingM18x1
installationfor flush mounting
range5 mm
switching_outputPNP normally open (NO)
switching_frequency900 Hz
housing_materialBrass, nickel-plated
material_sensingPA 12
connectionConnector, M12x1-Male, 4-pin
operating_voltage10...30 VDC
ambient_temperature-25...70 °C
ip_ratingIP68
approval_conformityCEUKCAcULusWEEE
Documents
Documents
x
Download Datasheet
