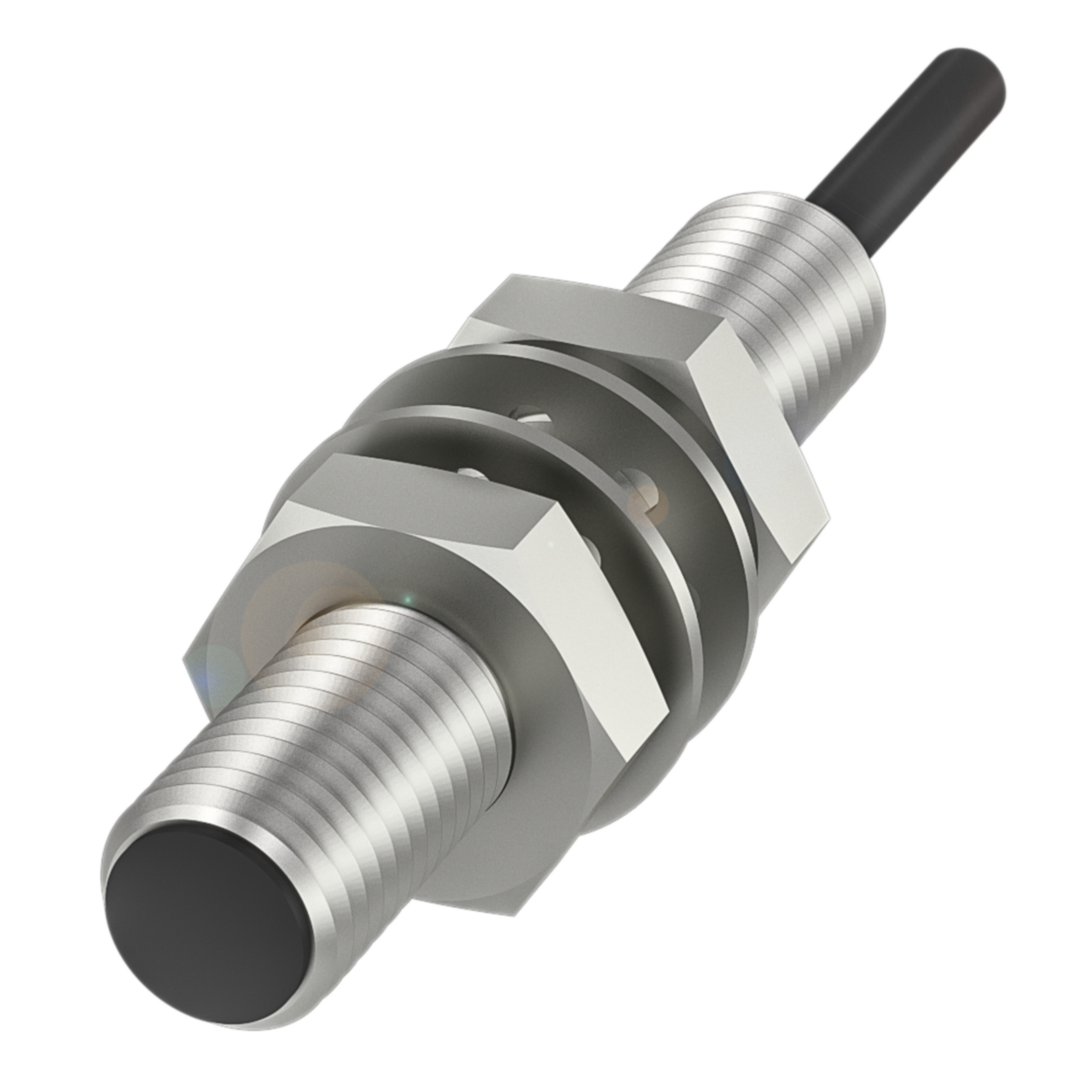

Balluff Inductive standard sensor, PNP, NO, M8, flush, 5m PUR Part number BES01AH

This inductive sensor detects metal targets at ranges up to 1.5 mm and provides a PNP normally open switching output. The M8x1 stainless steel housing is designed for flush mounting, making it suitable for installations with limited surrounding clearance, and the fixed 5 m PUR cable connects directly into the control cabinet or junction box. With an IP68 rating and an operating range of -40...85 °C, it is suited to demanding industrial environments where sensors are exposed to washdown, dust or temperature extremes.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 5.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -40...85 °C
• Dimensions: Ø 8 x 45 mm
