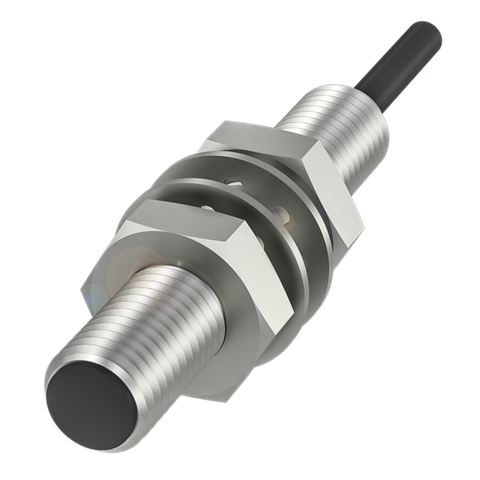

Balluff Inductive standard sensor, PNP, NO, M8, flush, 3m PUR
Balluff Inductive standard sensor, PNP, NO, M8, flush, 3m PUR

Balluff Inductive standard sensor, PNP, NO, M8, flush, 3m PUR

This inductive sensor is designed for flush mounting and offers a reliable switching distance of 1.5 mm. It features a PNP normally open (NO) output and operates within a voltage range of 10 to 30 VDC. The sensor is equipped with short-circuit and polarity reversal protection, making it suitable for...
Vendor: Balluff
SKU: BES01AF
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This inductive sensor is designed for flush mounting and offers a reliable switching distance of 1.5 mm. It features a PNP normally open (NO) output and operates within a voltage range of 10 to 30 VDC. The sensor is equipped with short-circuit and polarity reversal protection, making it suitable for use in harsh industrial environments with an IP68 rating.

Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsCE cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
SizeM8x1
Cable Length (mm)3mm
Cable Diameter (mm)3mm
Conductor Cross-section0.14 mm²
Tightening Torque8 Nm
Rated Operating Distance (mm)1.5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24V
Mounting TypeFlush mounting
Rated Operating Current200 m
Documents
Documents
x
Download Datasheet
