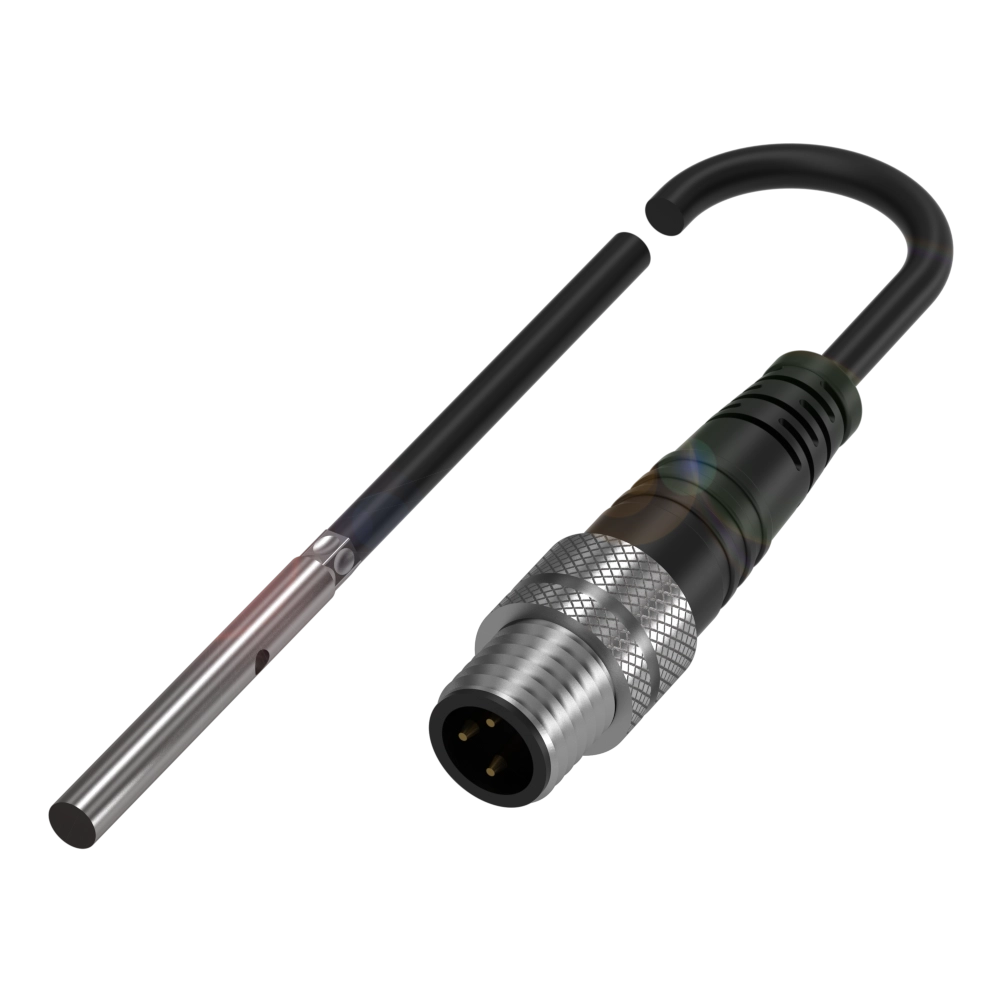

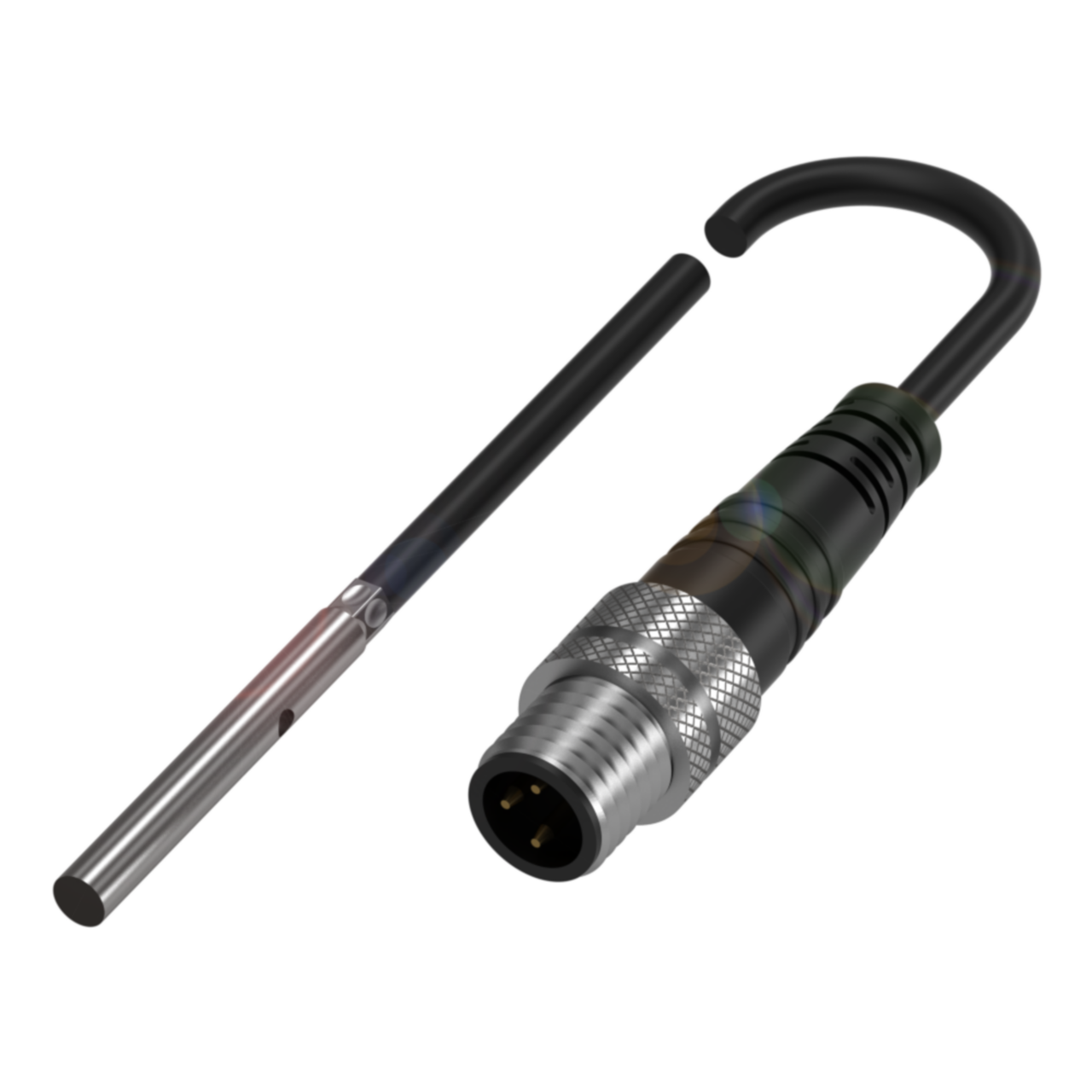

Balluff Inductive standard sensor, PNP, NO, D3.0, flush, M8 3-pin
Balluff Inductive standard sensor, PNP, NO, D3.0, flush, M8 3-pin Balluff
Balluff Inductive standard sensor, PNP, NO, D3.0, flush, M8 3-pin
Balluff Inductive standard sensor, PNP, NO, D3.0, flush, M8 3-pin Balluff

Balluff Inductive standard sensor, PNP, NO, D3.0, flush, M8 3-pin

Dimension Ø 3 x 27 mm Style Housing D3.0 Installation for flush mounting Range 1 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES00M5
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Dimension Ø 3 x 27 mm Style Housing D3.0 Installation for flush mounting Range 1 mm Switching output PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationscULus CE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
Part Length (mm)27mm
Cable Length (mm)300mm
Part Diameter (mm)3mm
Connection TypeM8x1 / Male / 3-pin
Rated Operating Distance (mm)1mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)3500 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
