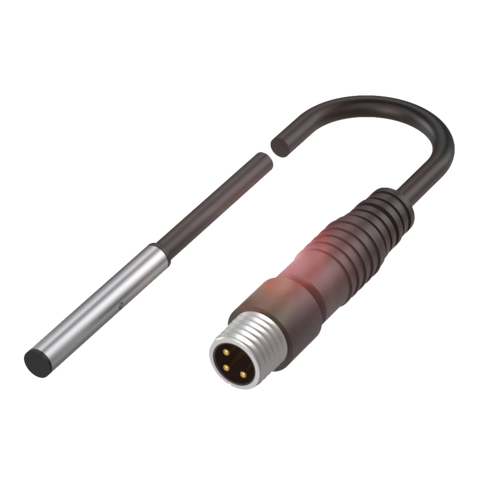

Balluff Inductive standard sensor, PNP, NO, D4.1, flush, M8 3-pin Part number BES00J3

This inductive sensor detects metallic targets at a rated operating distance of 0.8mm and provides a PNP normally open output, suited to flush mounting in panels or machine structures where the sensor face sits level with the surrounding metal. Its stainless steel housing and IP67 rating support use in industrial environments, with an M8x1 3-pin connector and a 0.30m PUR cable for connection. Operating from 10 to 30 VDC with a switching frequency of 5000 Hz, it is suitable for position and proximity detection tasks in automation equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
