Description

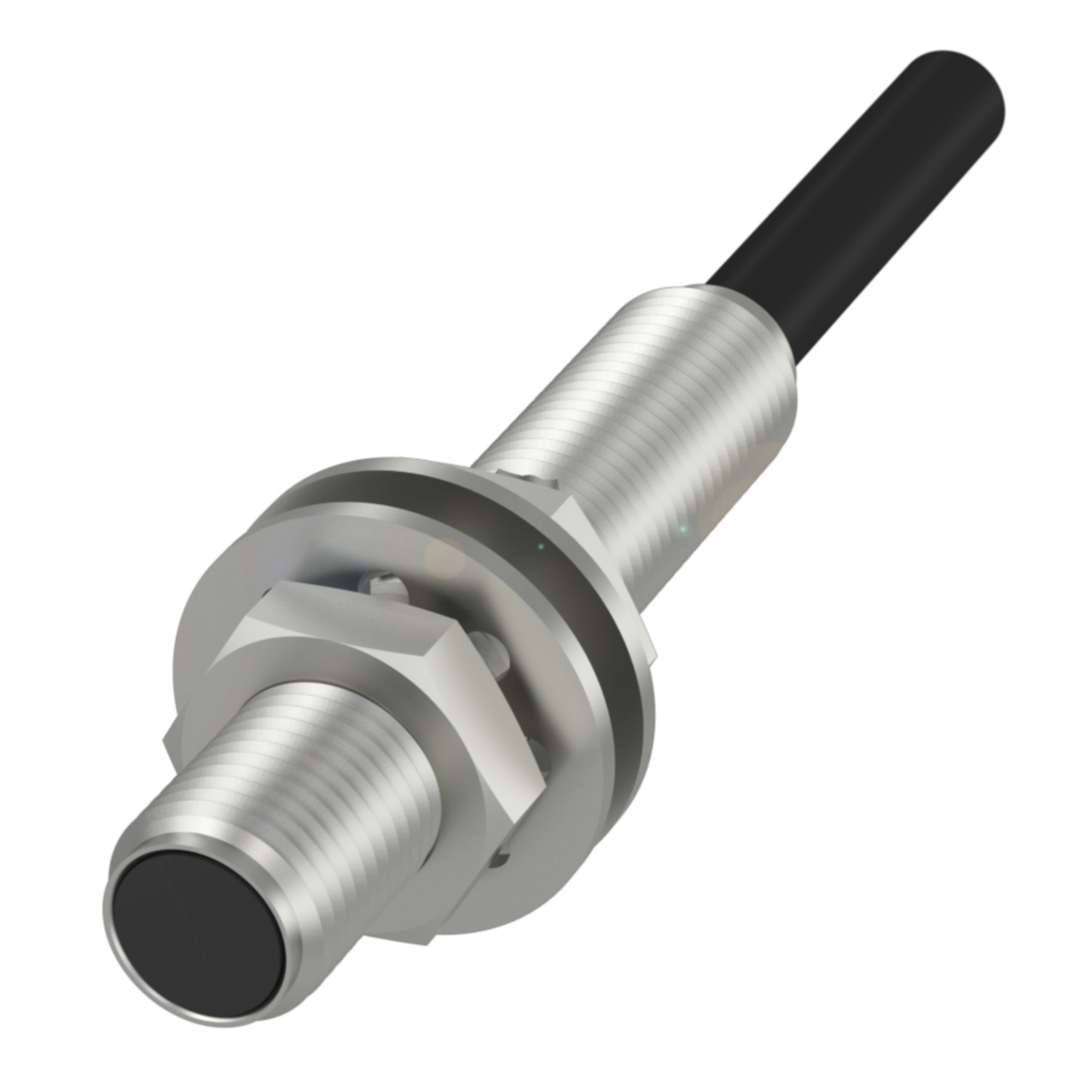

xThis M5 inductive sensor detects metal targets at a rated operating distance of 1.5mm and provides an NPN normally open output for connection to PLC or relay inputs. Its stainless steel housing and IP67 rating suit flush mounting in compact machine and panel applications where space is limited, while the 2m PUR cable allows direct wiring without additional connectors. Operating from 10-30 VDC, it is suited to standard industrial automation control circuits.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: NPN normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Size | M5x0.5 |
| Cable Length (mm) | 2 000mm |
| Cable Diameter (mm) | 3mm |
| Conductor Cross-section | 0.14 mm² |
| Tightening Torque | 1 Nm |
| Rated Operating Distance (mm) | 1.5mm |
| Switching Output | NPN normally open (NO) |
| Switching Frequency (Hz) | 5000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 100 mA |
