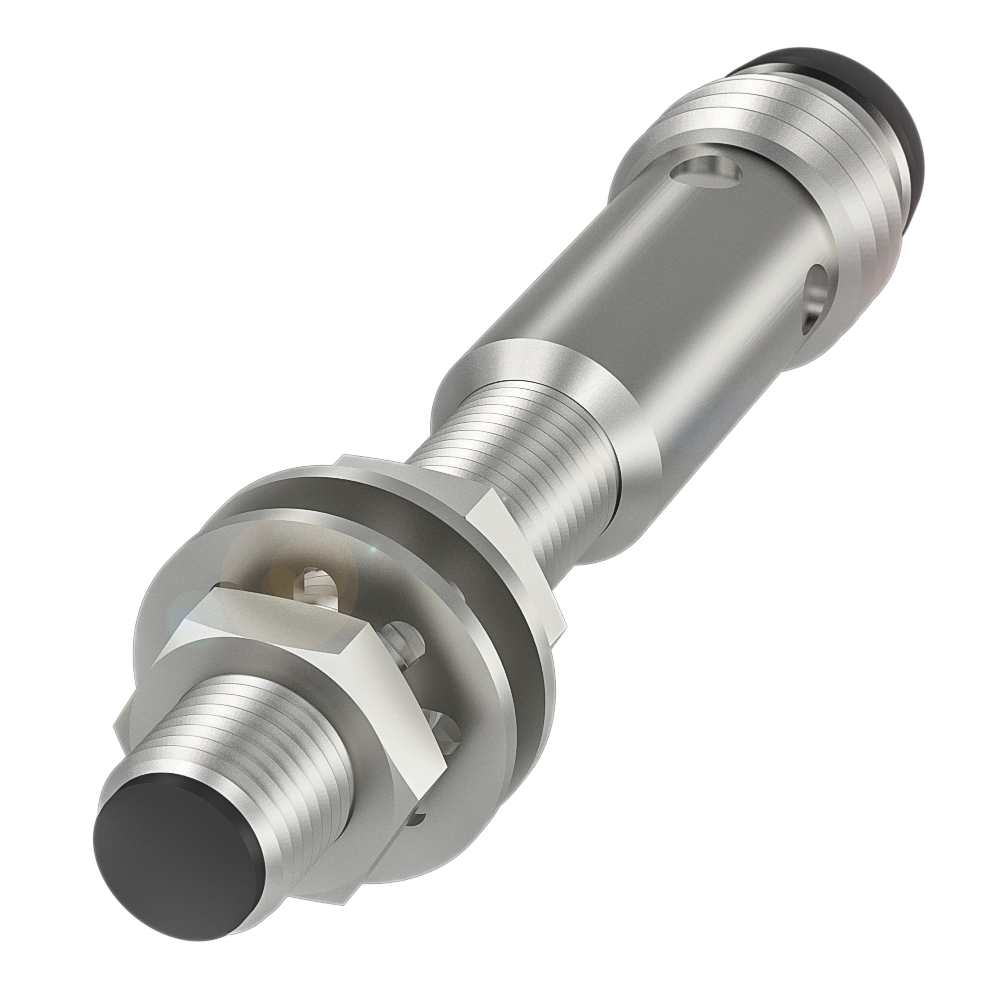

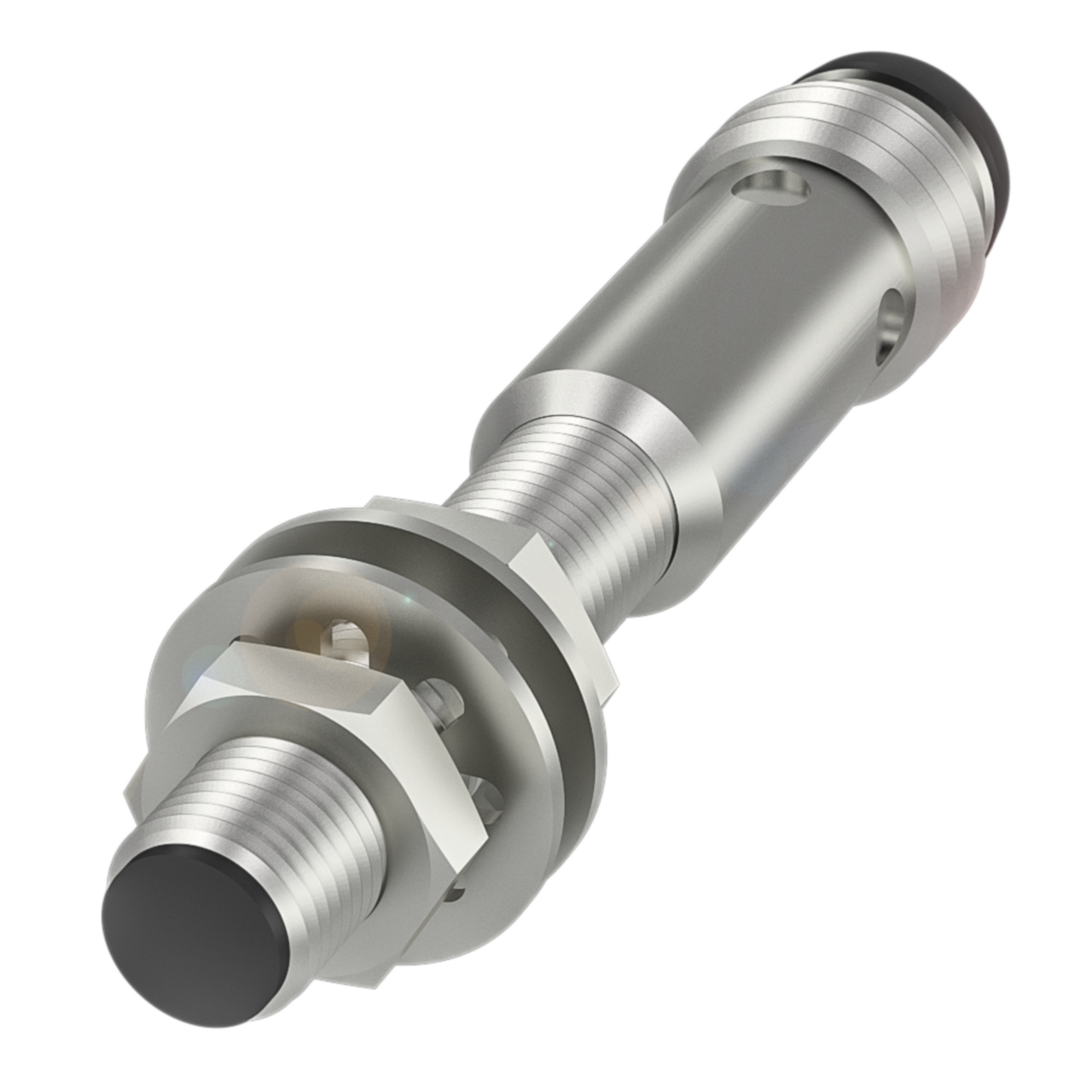

Balluff Inductive standard sensor, PNP, NO, M5, flush M8 3-pin
Balluff Inductive standard sensor, PNP, NO, M5, flush M8 3-pin Balluff
Balluff Inductive standard sensor, PNP, NO, M5, flush M8 3-pin
Balluff Inductive standard sensor, PNP, NO, M5, flush M8 3-pin Balluff

Balluff Inductive standard sensor, PNP, NO, M5, flush M8 3-pin

Dimension Ø 5 x 41 mm Style Housing M5x0.5 Installation for flush mounting Range 1.5 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES00HF
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Dimension Ø 5 x 41 mm Style Housing M5x0.5 Installation for flush mounting Range 1.5 mm Switching output PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationscULus CE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Sensing Surface / ContactsPBT
Part Length (mm)41mm
Part Diameter (mm)5mm
Tightening Torque1 Nm
Rated Operating Distance (mm)1.5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
