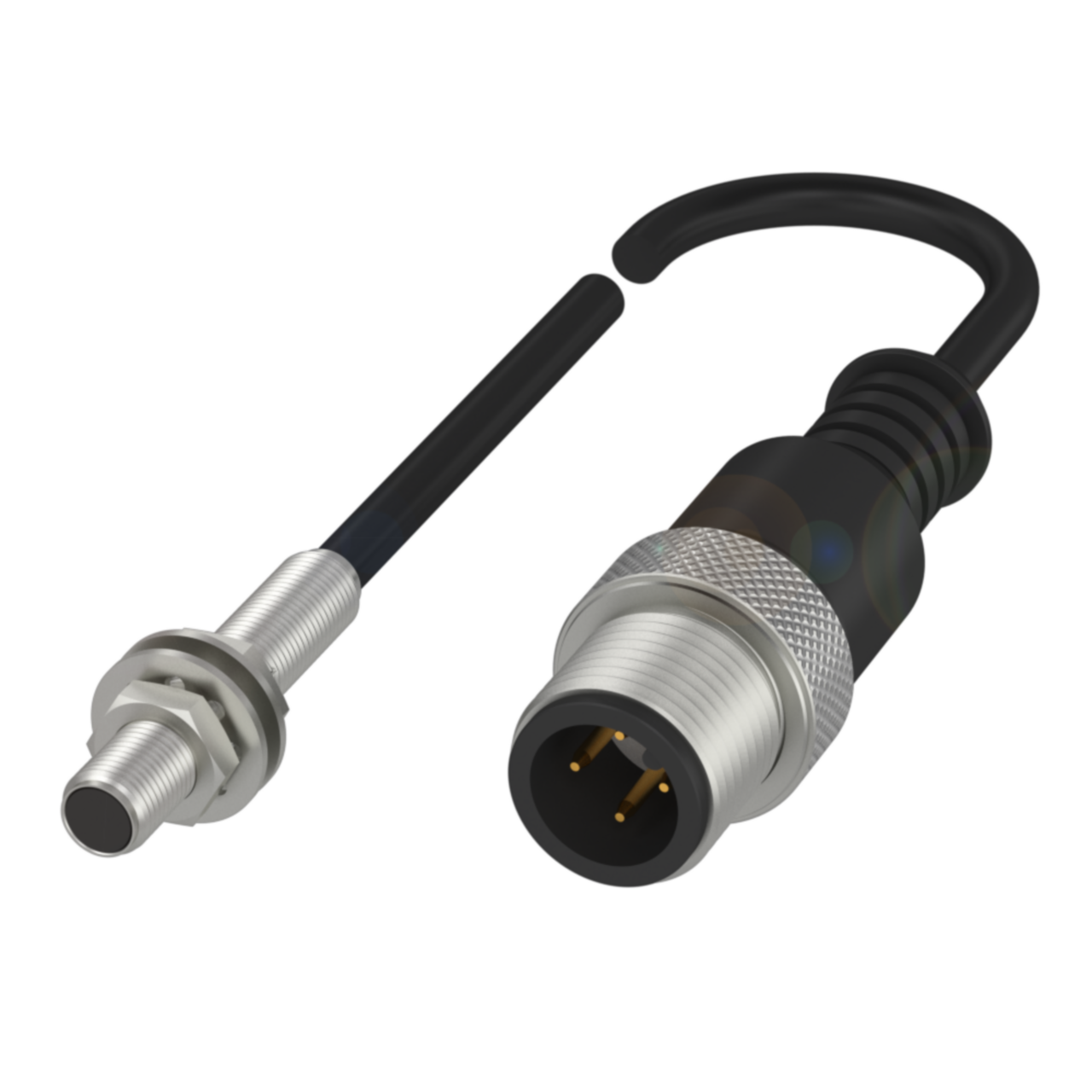

Balluff Inductive standrd sensor, PNP, NO, M5, flush, M12 4-pin Part number BES00H6

This M5 inductive sensor detects metal targets at a rated operating distance of 1.5 mm and provides a PNP normally open output switching at up to 5000 Hz. The flush-mount design with stainless steel housing and IP67 rating suits compact installations in industrial automation panels and machinery where space is limited. Connection is made via an M12x1, 4-pin, A-coded male connector, operating on 10–30 VDC.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
