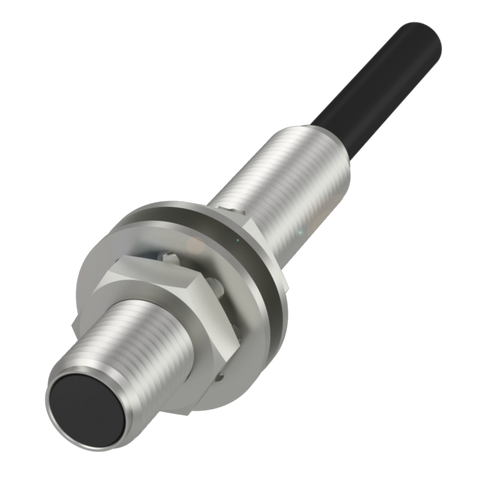

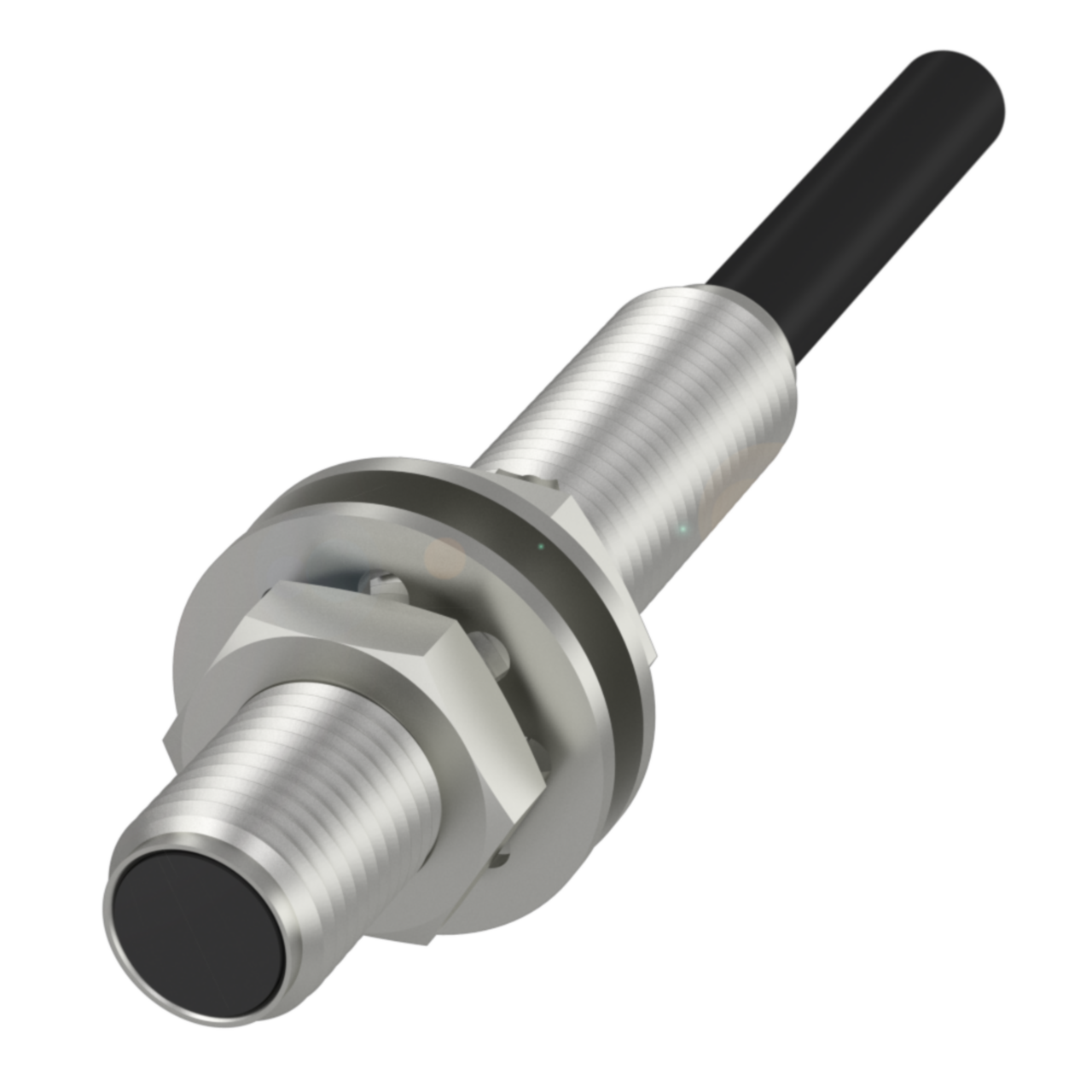

Balluff Inductive standard sensor, PNP, NO, M5, flush, 2m PUR Part number BES00H3

This M5x0.5 inductive sensor detects metal targets at a rated operating distance of 1.5 mm and provides a PNP normally open output for switching signals to a PLC or control circuit. Its flush mounting design and stainless steel housing suit installation in confined spaces where the sensor body must sit level with the mounting surface. With an IP67 rating and a PUR-jacketed 2 m cable, it is suited to industrial environments involving exposure to dust and moisture, such as machine bases and small automation fixtures.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
