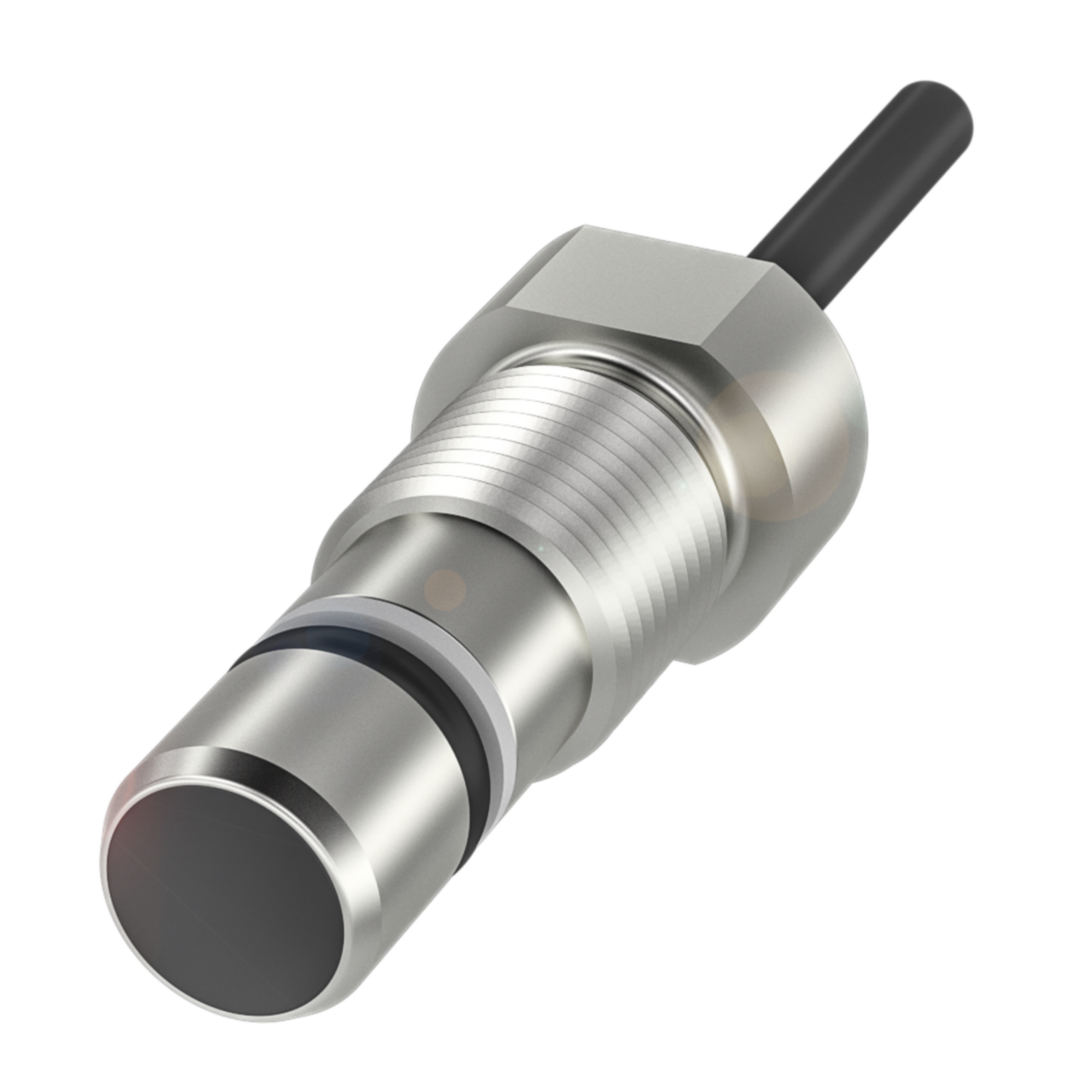

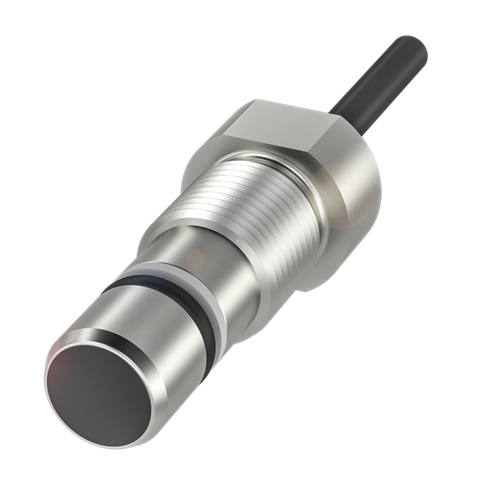

Balluff Pressure-rated inductive sensor, PNP, NO, M12, flush, 3m PUR Part number BHS0028

This inductive sensor detects the presence of metal targets within 1.5 mm and provides a PNP normally open switching output at a frequency of up to 2000 Hz. Housed in a stainless steel M12x1 body designed for flush mounting, it operates from 10...30 VDC across an ambient temperature range of -25...80°C and carries an IP68 rating, making it suitable for harsh or wash-down industrial environments. It is supplied with a 3 m PUR cable for direct connection into control panels or machine wiring.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 3.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...80 °C
• Dimensions: Ø 12 x 37 mm
