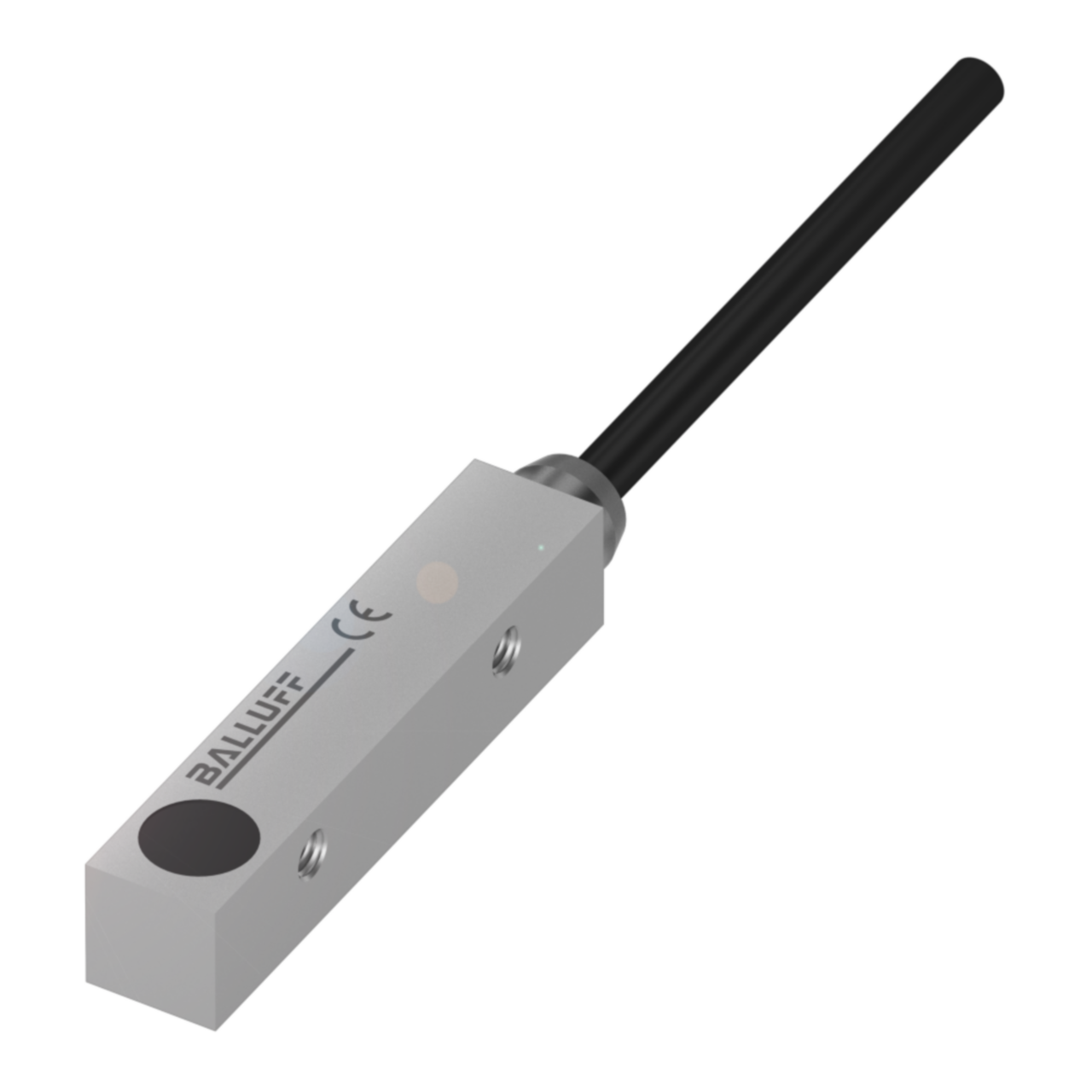

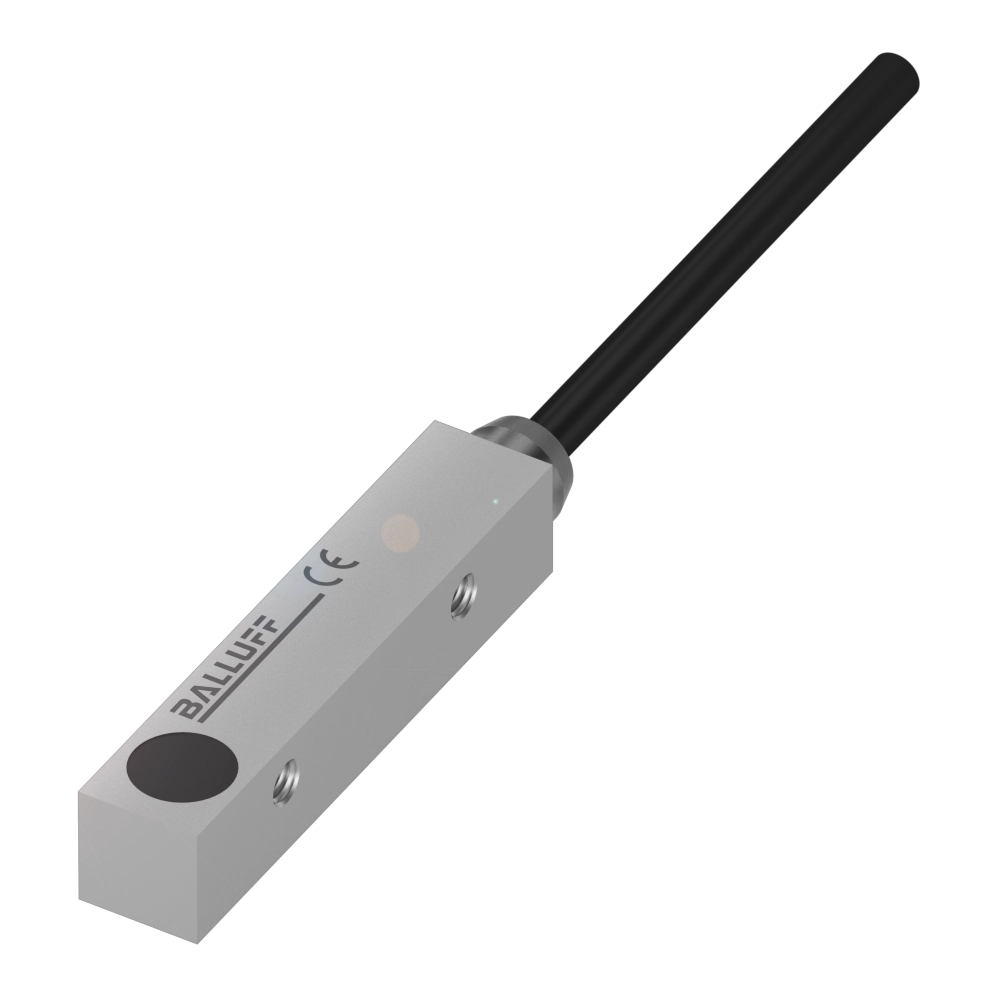

Balluff Inductive standard sensor, PNP, NO, flush, 5m PUR Balluff
Balluff Inductive standard sensor, PNP, NO, flush, 5m PUR Balluff

Balluff Inductive standard sensor, PNP, NO, flush, 5m PUR

Dimension 40 x 8 x 8 mm Style Housing 8x8 Installation for flush mounting Range 1.5 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES017Y
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Dimension 40 x 8 x 8 mm Style Housing 8x8 Installation for flush mounting Range 1.5 mm Switching output PNP Normally open (NO)
Specifications
Specifications
x
dimension40 x 8 x 8 mm
style_housing8x8
installationfor flush mounting
range1.5 mm
switching_outputPNP normally open (NO)
switching_frequency5000 Hz
housing_materialZinc, Die casting
material_sensingPBT
connectionCable, 5.00 m, PUR
operating_voltage10...30 VDC
ambient_temperature-25...70 °C
ip_ratingIP67
approval_conformityCEUKCAcULusWEEE
Documents
Documents
x
Download Datasheet
