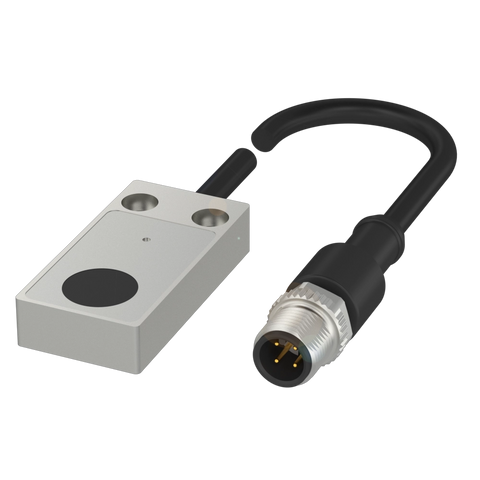

Description
xDimension
50 x 25 x 10 mm
Style Housing
50x25x10
Installation
for flush mounting
Range
5 mm
Switching output
PNP NO/NC
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Aluminium |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Part Depth (mm) | 10mm |
| Part Width (mm) | 25mm |
| Cable Length (mm) | 200mm |
| Part Height (mm) | 50mm |
| Connection Type | Cable with connector, 0.20 m, PUR |
| Rated Operating Distance (mm) | 5mm |
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Switching Frequency (Hz) | 500 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
