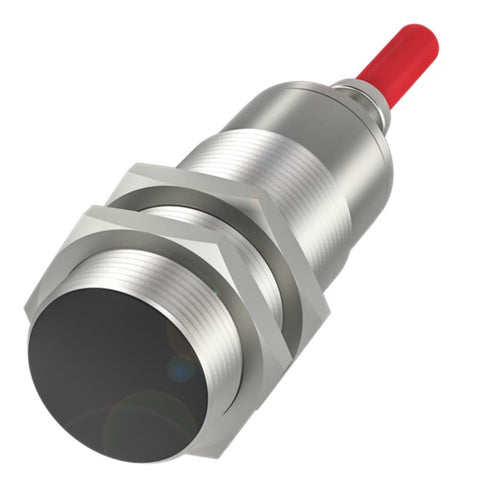

Balluff Inductive standard sensor, PNP, NO/NC, M30, flush, 5m silicone
Balluff Inductive standard sensor, PNP, NO/NC, M30, flush, 5m silicone

Balluff Inductive standard sensor, PNP, NO/NC, M30, flush, 5m silicone

Vendor: Balluff
SKU: BES02H7
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP67, IP60 at cable exit
Compliance/CertificationsCE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-plated
Material: Jacket / Cover NutSilicone
Material: Sensing Surface / ContactsPBT
Part Length (mm)91.5mm
Stripping Length (mm)5 000mm
Part Diameter (mm)30mm
Cable Diameter (mm)8mm
Connection StyleCable, 5.00 m, Silicone
Tightening Torque70 Nm
Rated Operating Distance (mm)10mm
Switching OutputPNP normally open/normally closed (NO/NC)
Switching Frequency (Hz)300 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current400 mA
Documents
Documents
x
Download Datasheet
