Description

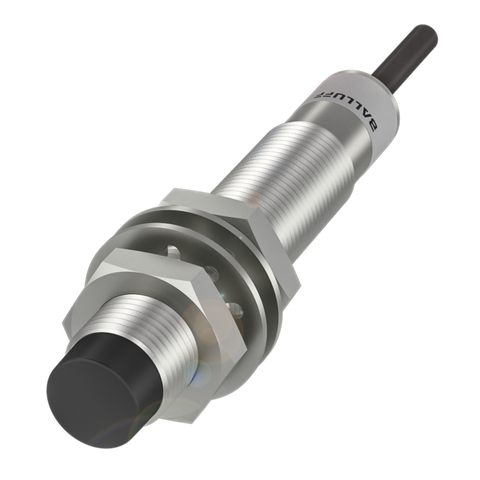

xThis is an inductive proximity sensor with a cylindrical M12x1 housing in nickel-plated brass, designed for non-flush mounting and a sensing range of 3.7 mm. It provides a PNP normally open switching output, operates from 20...30 VDC, and is rated IP65 for use in environments with ambient temperatures between -25 and 70°C. The sensor is fitted with a 3.00 m PUR cable and is suited to automation applications requiring detection of metal targets in panels and machine builds.
Key specifications
- IP rating: IP65
- Operating voltage: 20...30 VDC
- Connection: Cable, 3.00 m, PUR
- Output: PNP normally open (NO)
- Operating temperature: -25...70 °C
- Dimensions: Ø 12 x 70 mm
Specifications
x| dimension | Ø 12 x 70 mm |
| style_housing | M12x1 |
| installation | non-flush |
| range | 3.7 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 300 Hz |
| housing_material | Brass, nickel-plated |
| material_sensing | PA 12 |
| connection | Cable, 3.00 m, PUR |
| operating_voltage | 20...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP65 |
| approval_conformity | CEUKCAWEEE |
