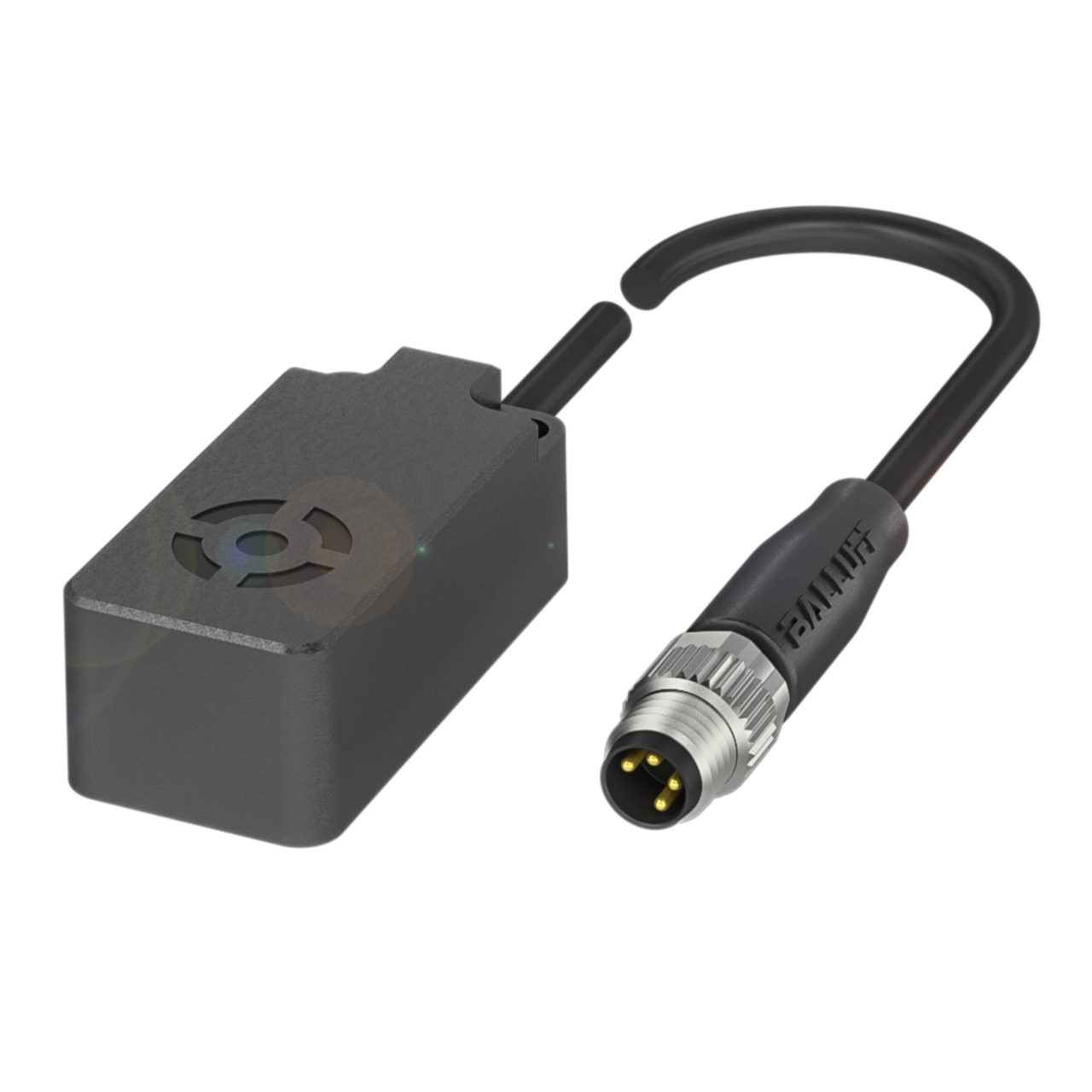

Balluff BAW R14KC-UAD15F-BP00,15-GS75-506 Inductive sensor
Balluff BAW R14KC-UAD15F-BP00,15-GS75-506 Inductive sensor

Balluff BAW R14KC-UAD15F-BP00,15-GS75-506 Inductive sensor

Vendor: Balluff
SKU: BAW0064
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2\nIEC 60947-5-7
Material: Housing / GripPA 12
Material: Jacket / Cover NutPU
Material: Sensing Surface / ContactsPA 12
Bending RadiusBending radius min., fixed cable ≥ 12 mm Bending radius min., flexible cable ≥ 12 mm
SizeBlock style
Cable Length (mm)150mm
Cable Diameter (mm)3.3mm ... 3.5mm
Conductor Cross-section0.14 mm²
Connection TypeM8x1 / Male / 4-pin / A-coded
Connection StyleCable with connector, 150 mm, PU
Tightening Torque0.5 Nm
Rated Insulation Voltage75 VDC
Operating Voltage 15 - 30 VDC
Rated Voltage24 V
Documents
Documents
x
Download Datasheet
