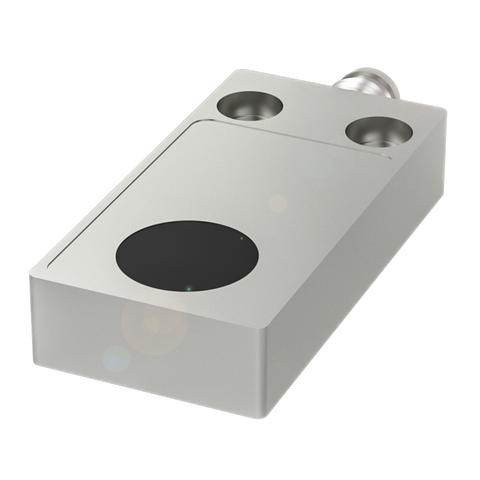

Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin Balluff
Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin Balluff

Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin

Dimension 59 x 25 x 10 mm Style Housing 59x25x10 Installation for flush mounting Range 5 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES01FR
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 6 left in stock
Ask an expert
Description
Description
x
Dimension
59 x 25 x 10 mm
Style Housing
59x25x10
Installation
for flush mounting
Range
5 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
dimension59 x 25 x 10 mm
style_housing59x25x10
installationfor flush mounting
range5 mm
switching_outputPNP normally open (NO)
switching_frequency500 Hz
housing_materialAluminium
material_sensingPBT
connectionConnector, M8x1-Male, 3-pin
operating_voltage10...30 VDC
ambient_temperature-25...70 °C
ip_ratingIP65
approval_conformityCEUKCAWEEE
Documents
Documents
x
Download Datasheet
