Product Information

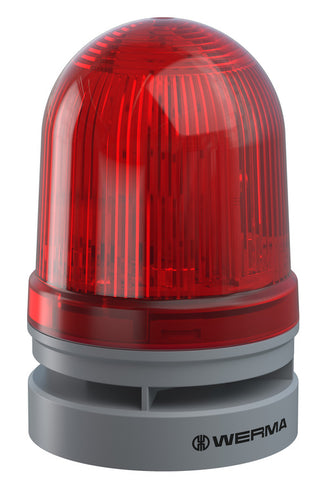

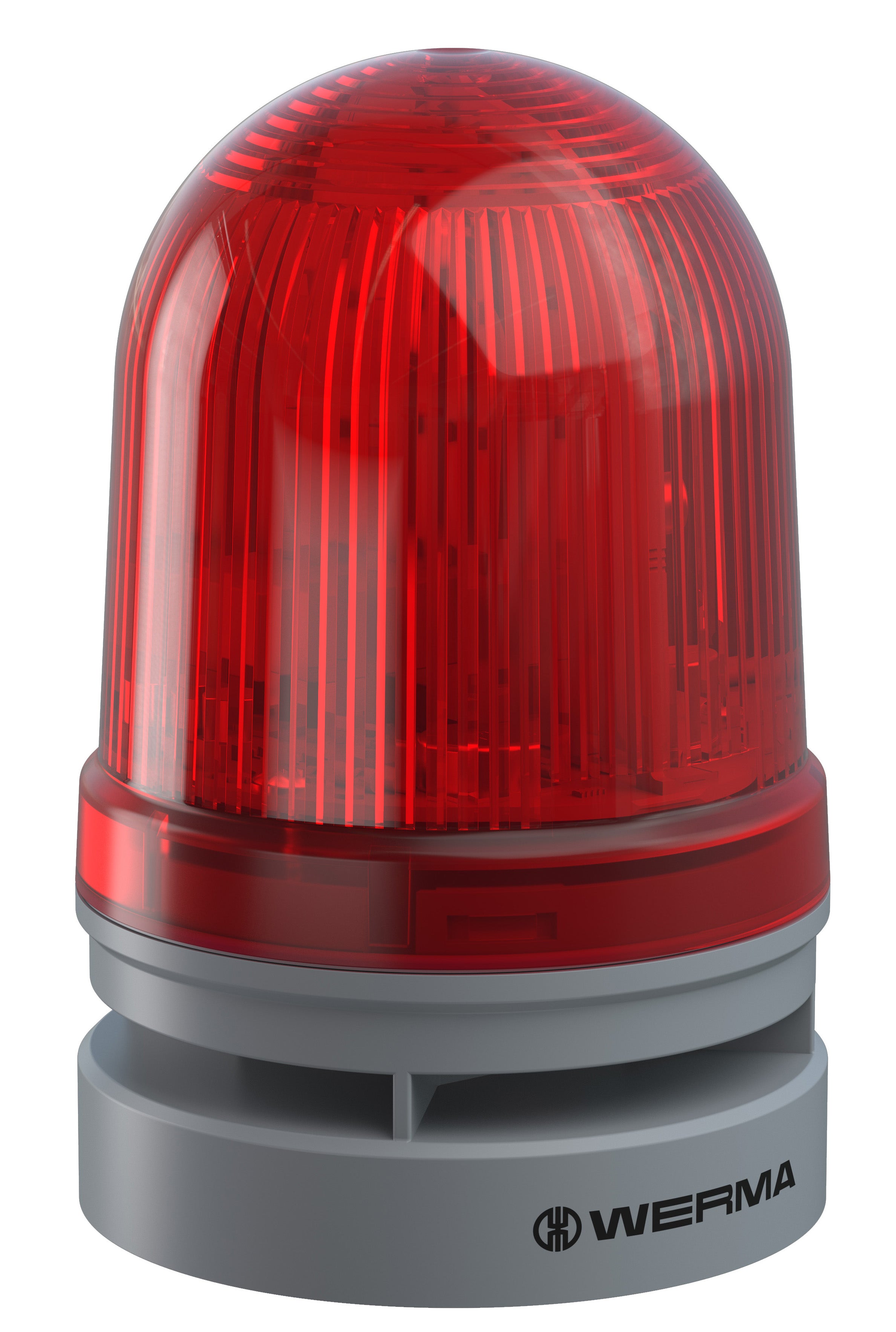

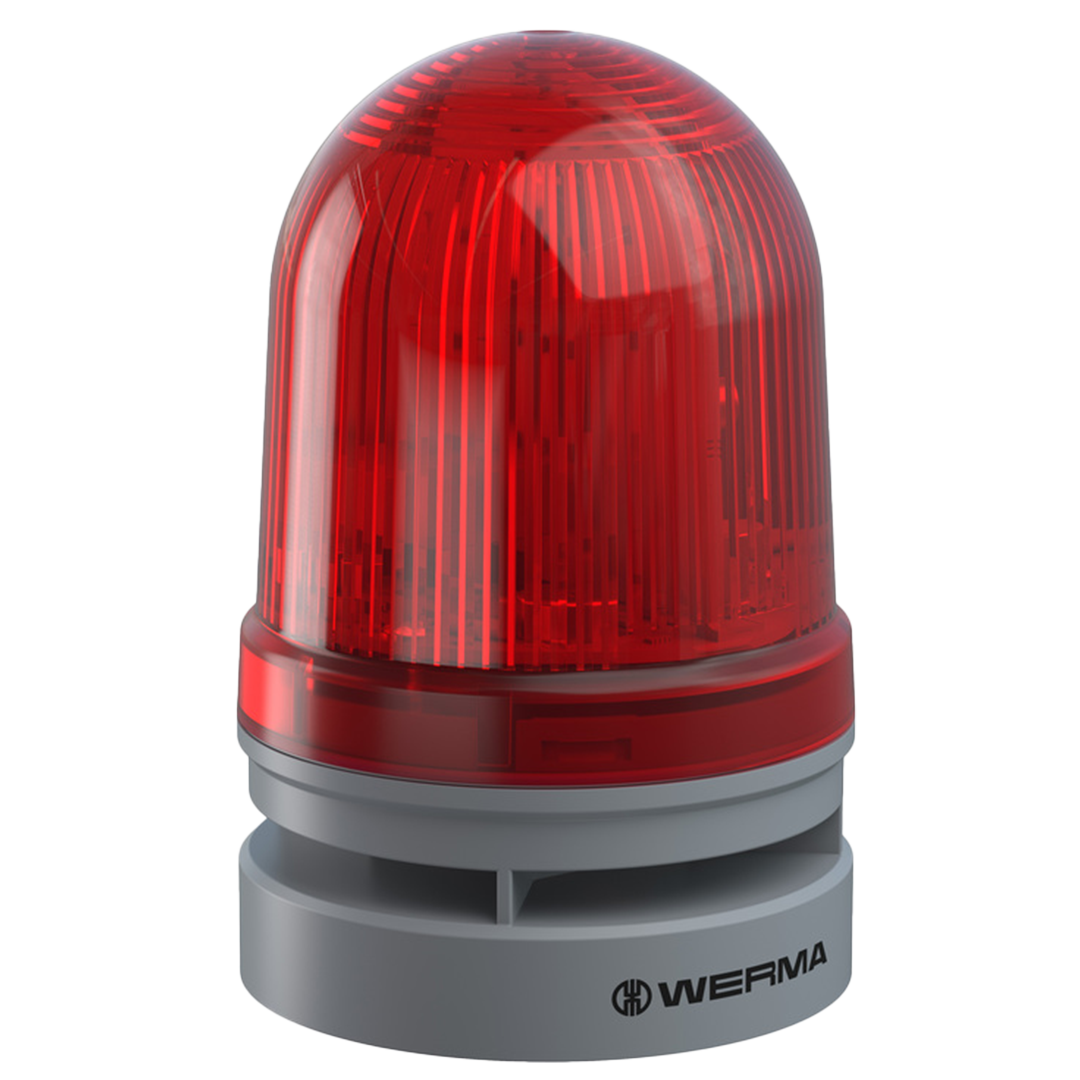

Midi TwinLIGHT Combi 12/24VAC/DC RD

Article Number

461.110.70

Type of Fixing

Adapter required

Light Colour

Choose a Light colour

Voltage Options

12V; 24V AC/DC

115-230V AC

Product Info

Medium-sized optical-acoustic combination from the EvoSIGNAL series.

• For signalling over medium distances (10 - 30 m distance).
• TwinLIGHT: Two luminous images in one product (continuous and flashing).
• Multi-tone siren: 10 tones with 110 dB.
• Please order suitable mounting adapter separately.

Technical Data

Mechanical Data

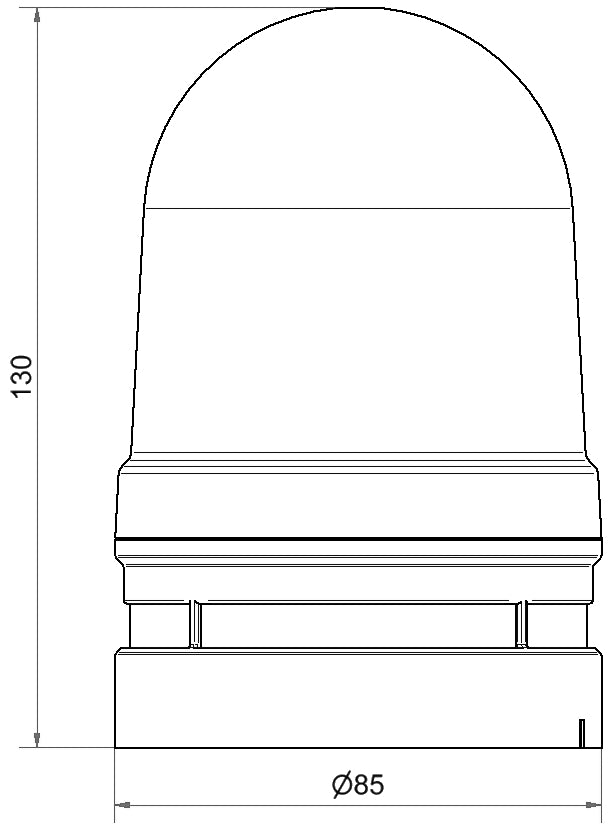

• Diameter: 85.00 mm
• Height: 130.00 mm
• Materials: PC; PC/ABS
• Dome Colour: Red
• Housing Colour: Grey
• Protection Category: IP66
• Connection: Push-in terminal
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Type of Fixing: Adapter required
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 217.00 g
• Product Weight: 180.00 g

Electrical Data

• Operating Voltage: 12V; 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 12 VDC
• Rated Operational Current: 290.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Rated Inrush Current: 2.5 A
• Overvoltage Category: III

Optical Data

• Light Source: LED
• Optical Signal Image: Blink; Permanent; TwinLight
• Blink Frequency: 1 Hz
• Service Life Optical: 50,000 h minimum
• Pulse & Pause Duration: 466 ON, 557 OFF

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
• MTTF-value [years]: No

Audible Data

• Volume (max) at 1m distance: 110.0 dB (A)
• Acoustic Signal Image: Multi-tone
• Audio Frequency: 3300.00 Hz
• Number of Tones: 10 tones
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.24 MB)
• Operating Instructions (1.11 MB)
• Video (8.27 MB)
• Dimensional Drawing (0.04 MB)
• CAD Model STP (0.47 MB)
