Description

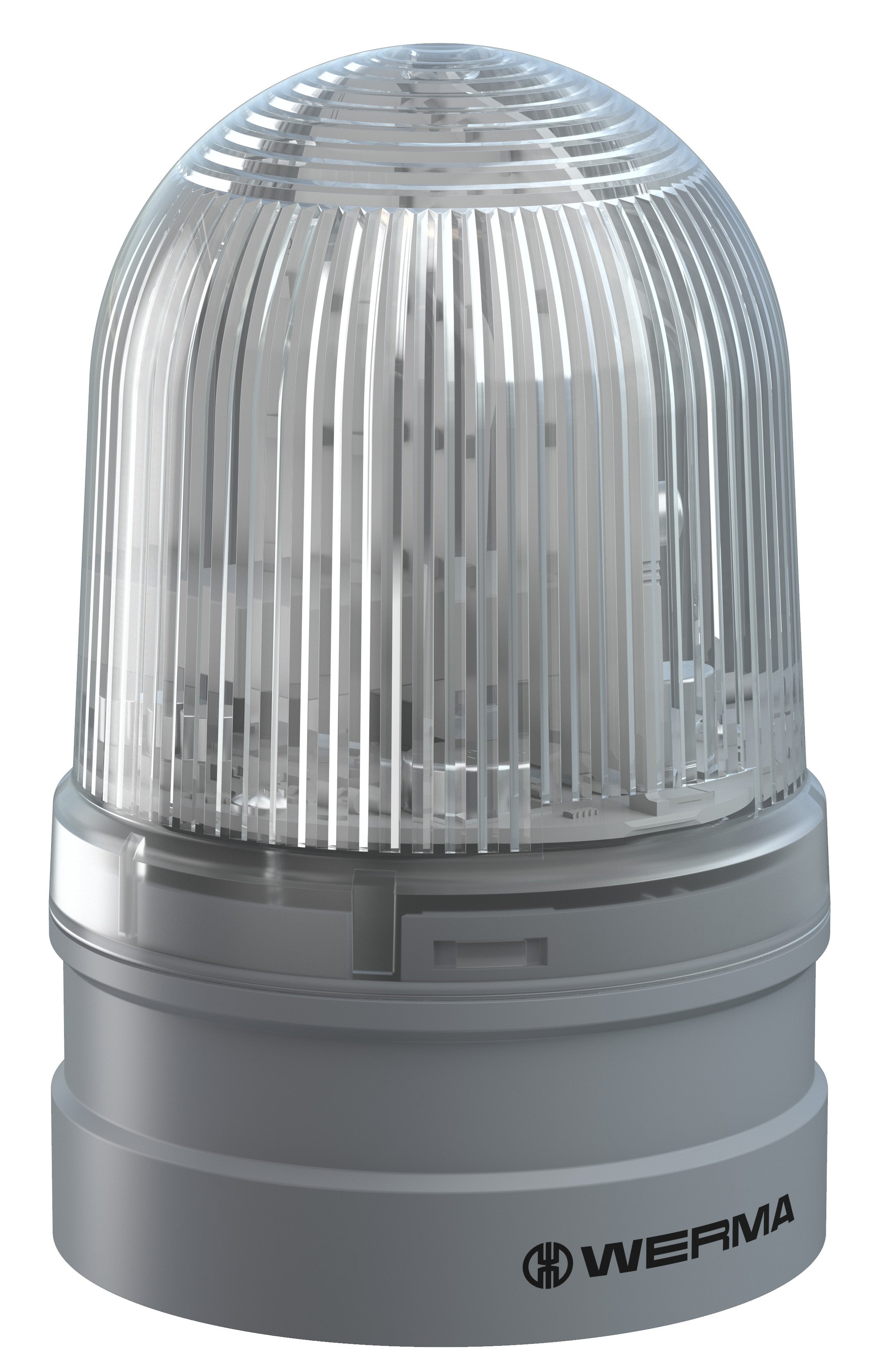

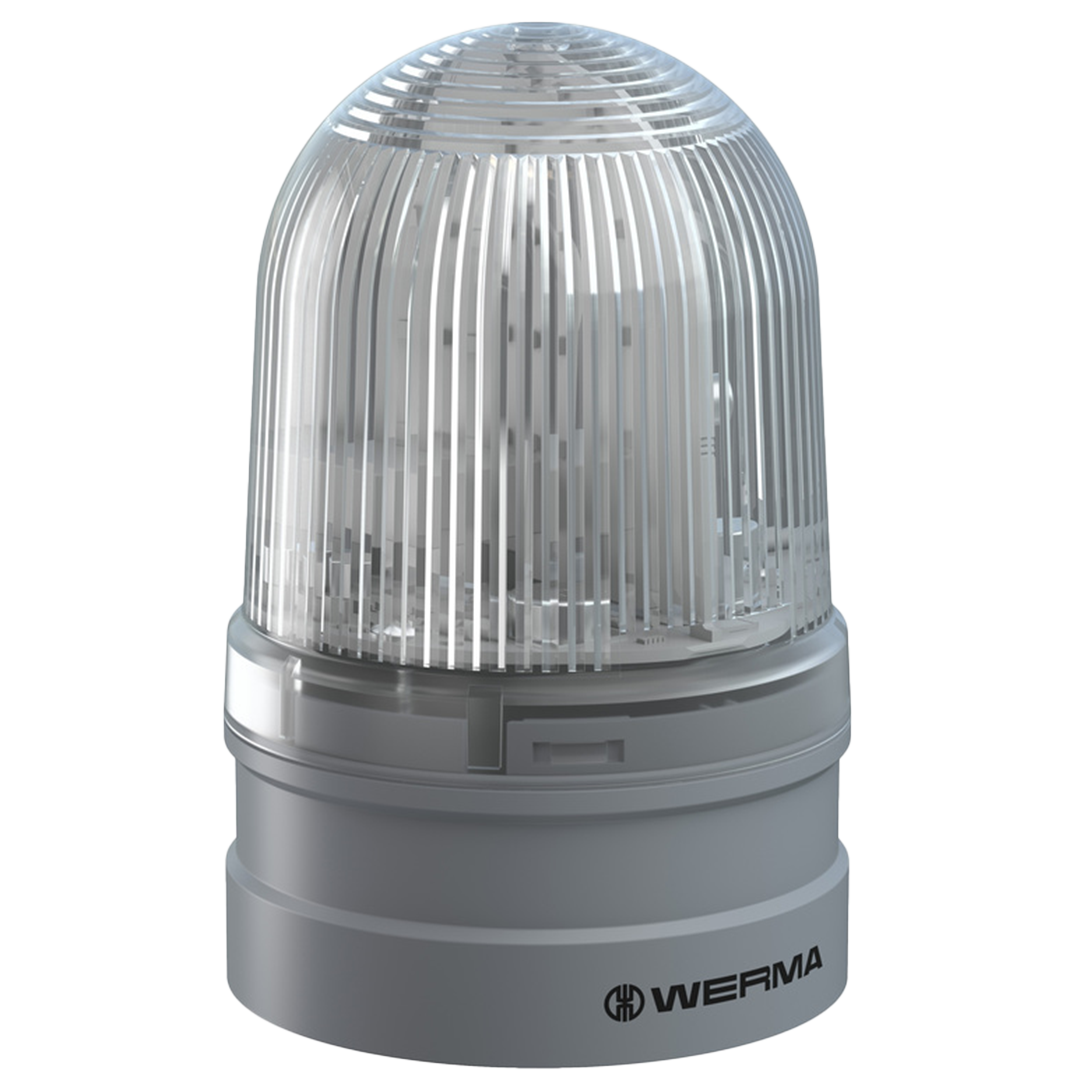

xWerma's Midi TriColour 12/24V AC/DC is equipped with a permanent signalling effect. For further installation ease, the connection is a push-in terminal. Thus making the Midi TriColour a quick and easy way to create the perfect signalling solution.
\n\nParameter
\n\nDesign: Midi TriColour 12/24VAC/DC RD/YE/GN
\n\nLight source: LED
\n\nLight colour: MC 3 colours\nRed
\n\nOptical signal image: Permanent
\n\nService life optical: 50,000 h minimum
\n\n\n
Electrical data
\n\nOperating voltage: 12V\n24V
\n\nOperating voltage type: AC/DC
\n\nOperating voltage frequency: 50Hz
\n\nRated operational current: 135 mA
\n\nProtection class: Protection class 2
\n\nPollution degree: 3
\n\n\n\n
Mechanical data
\n\nMaterials: PC\nPC/ABS
\n\nDome colour: Clear
\n\nHousing colour: Grey\n
\n\nConnection: Push-in terminal\n
\n\ncross-sectional area minimum: 0,25mm² / 24AWG
\n\ncross-sectional area maximum: 1,50mm² / 16AWG
\n\nUL Type Rating: Type 12
\n\n\n\n
Ambient conditions
\n\nWorking temperature: -30°C to +60°C
\n\nProtection category: IP66
