Product Information

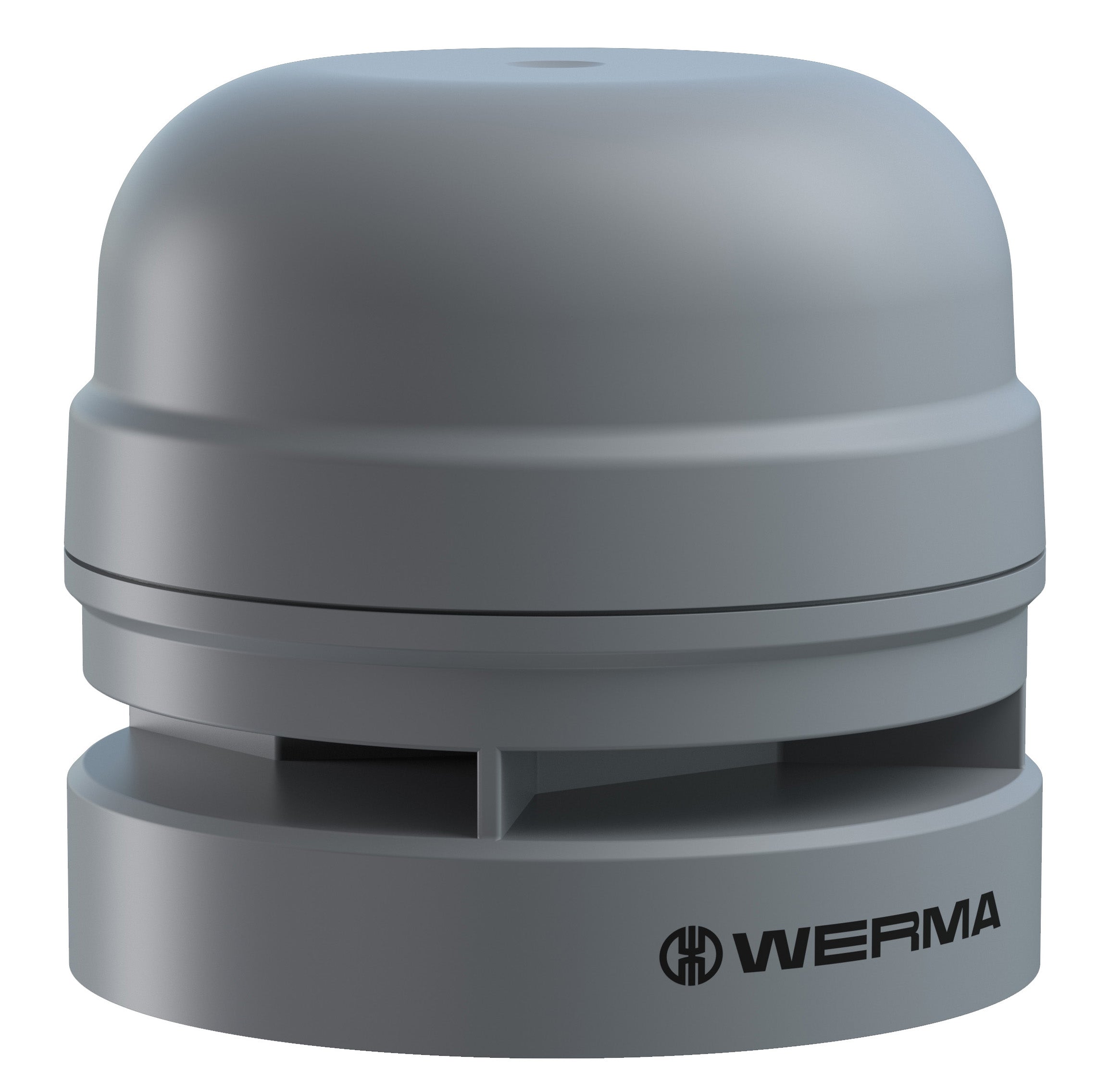

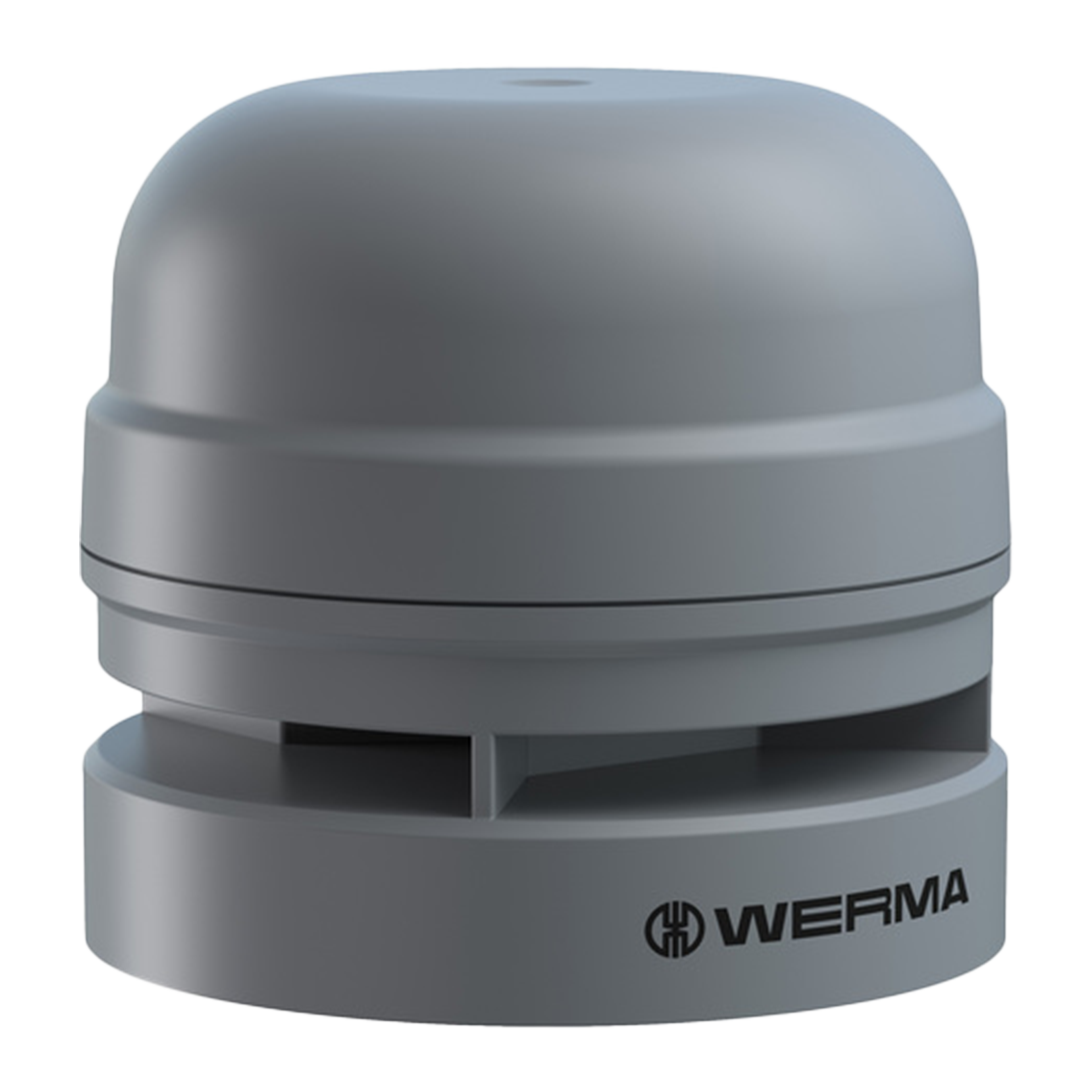

Midi Sounder 12/24VAC/DC GY

Article Number

161.700.70

Type of Fixing

Adapter required

Choose a Voltage

12V; 24V AC/DC

115-230V AC

Product Info

Medium-sized multi-tone sounder from the EvoSIGNAL series.

• For applications with limited space.
• Please order matching mounting adapter separately.

Technical Data

Mechanical Data

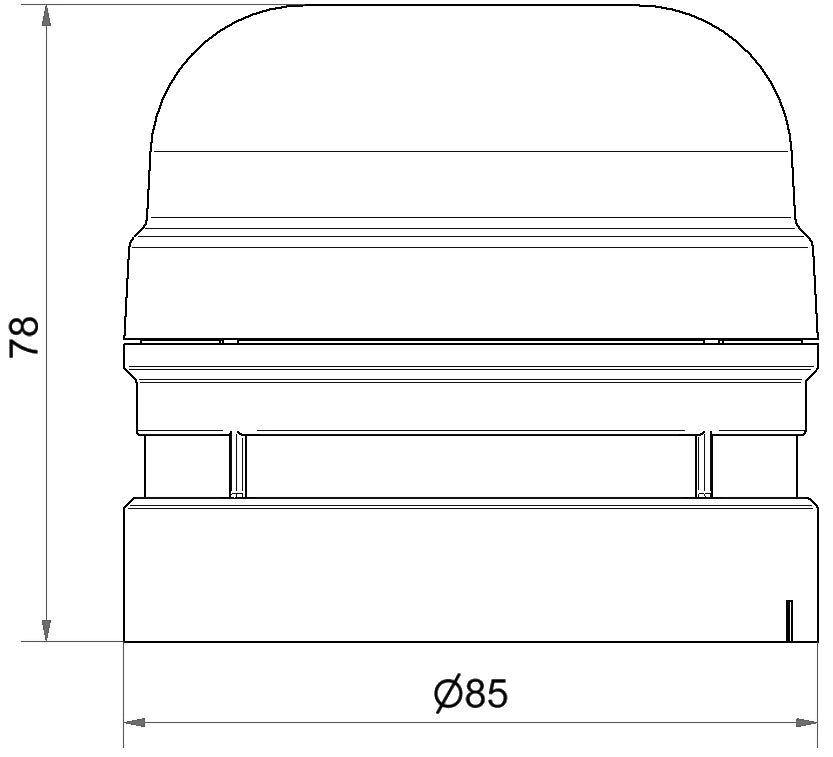

• Height: 78.00 mm
• Diameter: 85.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Grey
• Weight with Packaging: 178.00 g
• Product Weight: 140.00 g
• Protection Category: IP66
• Connection: Push-in terminal
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Type of Fixing: Adapter required
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C

Electrical Data

• Operating Voltage: 12V; 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 12 VDC
• Rated Operational Current: 135.00 mA
• Rated Inrush Current: 2.5 A
• Overvoltage Category: III
• Protection Class: Protection class 2
• Pollution Degree: 3

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with IC: No
• EAC Certificate Available: No
• Conforms with AS-I: No
• Conforms with UKCA (Importer): Yes
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with TÜV: No
• Conforms with VdS: No
• MTTF-value [years]: No

Audible Data

• Volume (max) at 1m distance: 110.0 dB (A)
• Acoustic Signal Image: Multi-tone
• Audio Frequency: 3300.00 Hz
• Number of Tones: 10 tones
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.18 MB)
• Operating Instructions (1.11 MB)
• Dimensional Drawing (0.06 MB)
• CAD Model STP (1.01 MB)
