Description
xSpecifications
x| IP Rating | IP65 |
| Compliance/Certifications | CE / RoHS directive / WEEE / EAC / UKCA |
| Temperature: Operating / Dynamic | -30°C to 50°C |
| Material: Housing / Grip | ABS / PC |

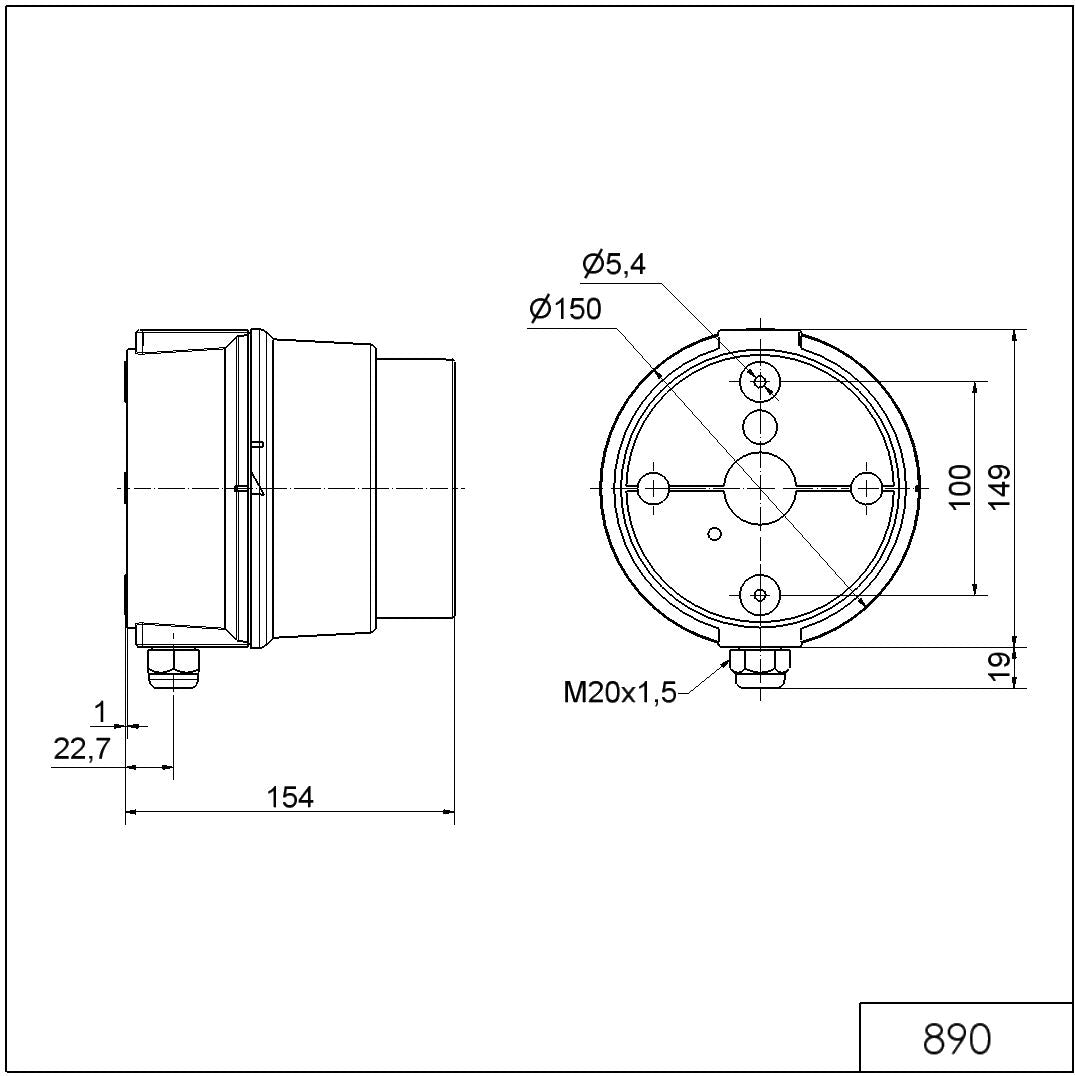

| Part Length (mm) | 154mm |
| Part Height (mm) | 168mm |
| Part Diameter (mm) | 150mm |
| Weight (g) | 463g |
| Conductor Cross-section | cross-sectional area minimum 0,50mm² / 20AWG - cross-sectional area maximum 1,50mm² / 16AWG |
| Connection Type | Spring-type terminal |
| Operating Voltage | 12 - 24 V |
| Rated Voltage | 24 VDC |
| Mounting Type | Base mounting / Wall mounting |
| Rated Operating Current | 260 mA |
| Colour | Grey |
