Product Information

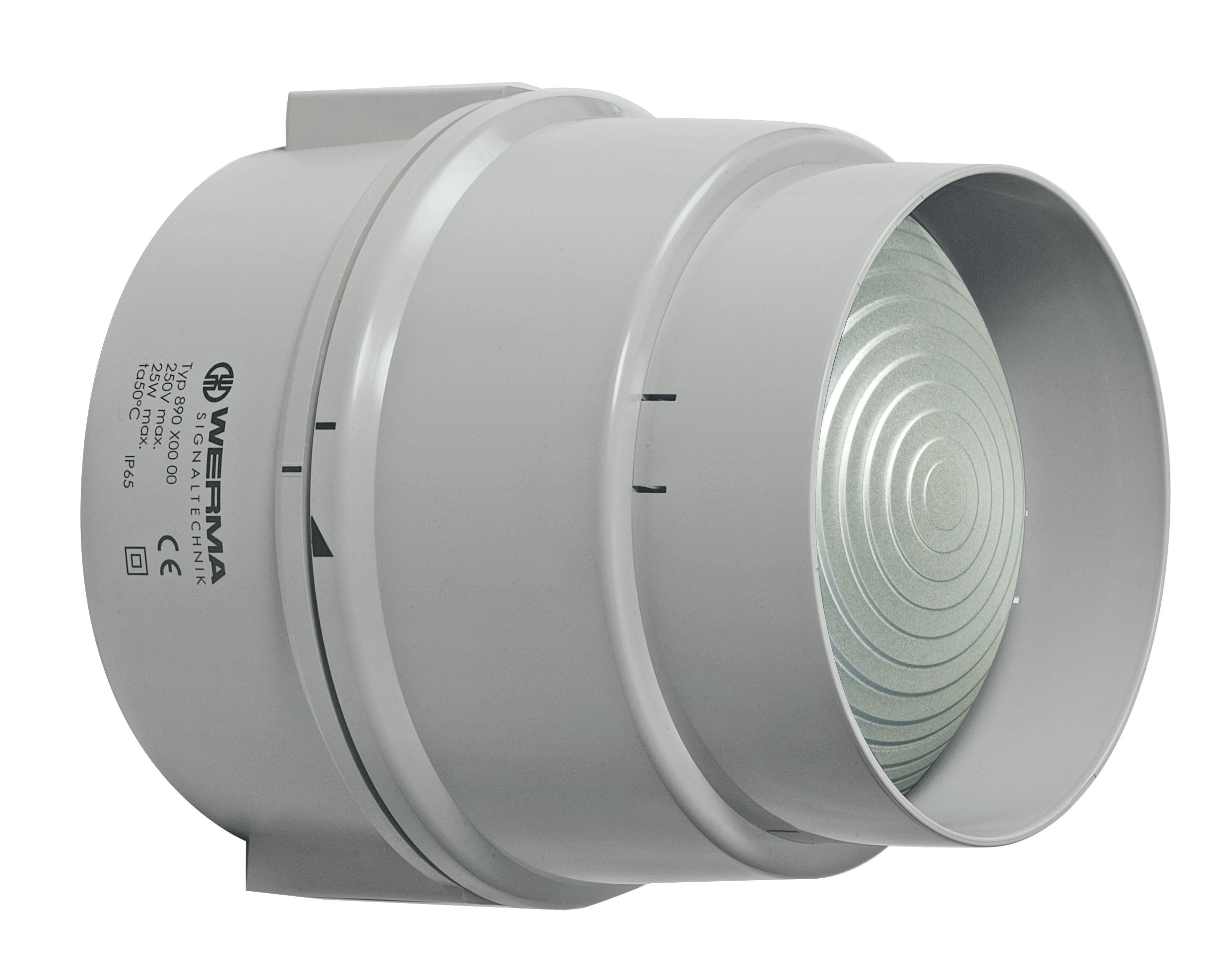

LED Perm. Beacon BWM 115-230VAC RD

Article Number

890.120.68

Type of Fixing

Base mounting; Wall mounting

Product Info

LED beacon for traffic light combinations

Clear signalling effect even in direct sunlight

Maintenance-free LED technology

Innovative fixing bracket for simple mounting

Technical Data

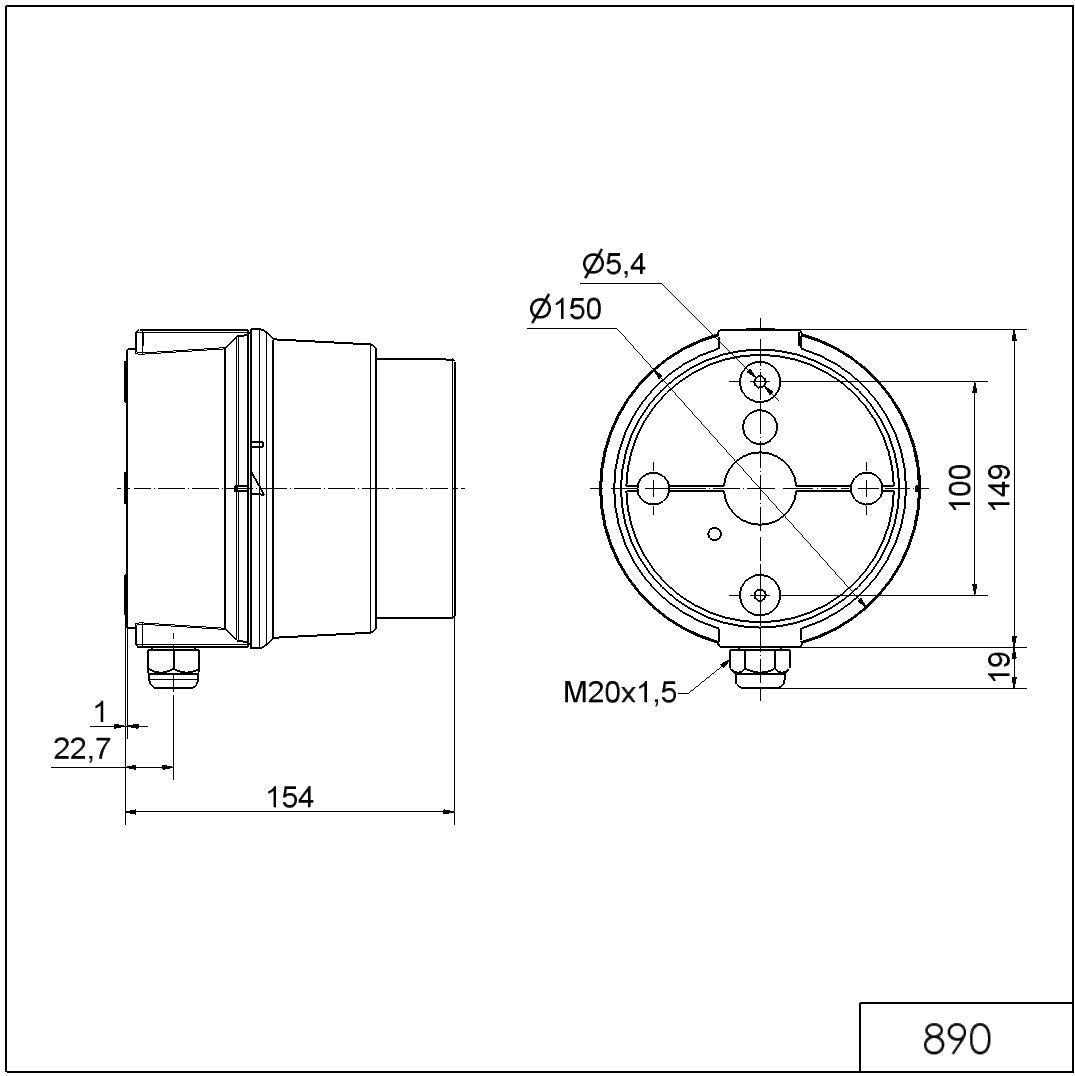

Mechanical Data

• Height: 168.00 mm
• Length: 154.00 mm
• Diameter: 150.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Grey
• Dome Colour: Clear
• Protection Category: IP65
• Connection: Spring-type terminal
• Cross-sectional Area Minimum: 0.50 mm² / 20 AWG
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 548.00 g
• Product Weight: 476.00 g

Electrical Data

• Operating Voltage: 115-230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz at 230V; 60Hz at 115V
• Protection Class: Protection class 2
• Pollution Degree: 3
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with CCC: Yes
• Conforms with UKCA (Importer): Yes
