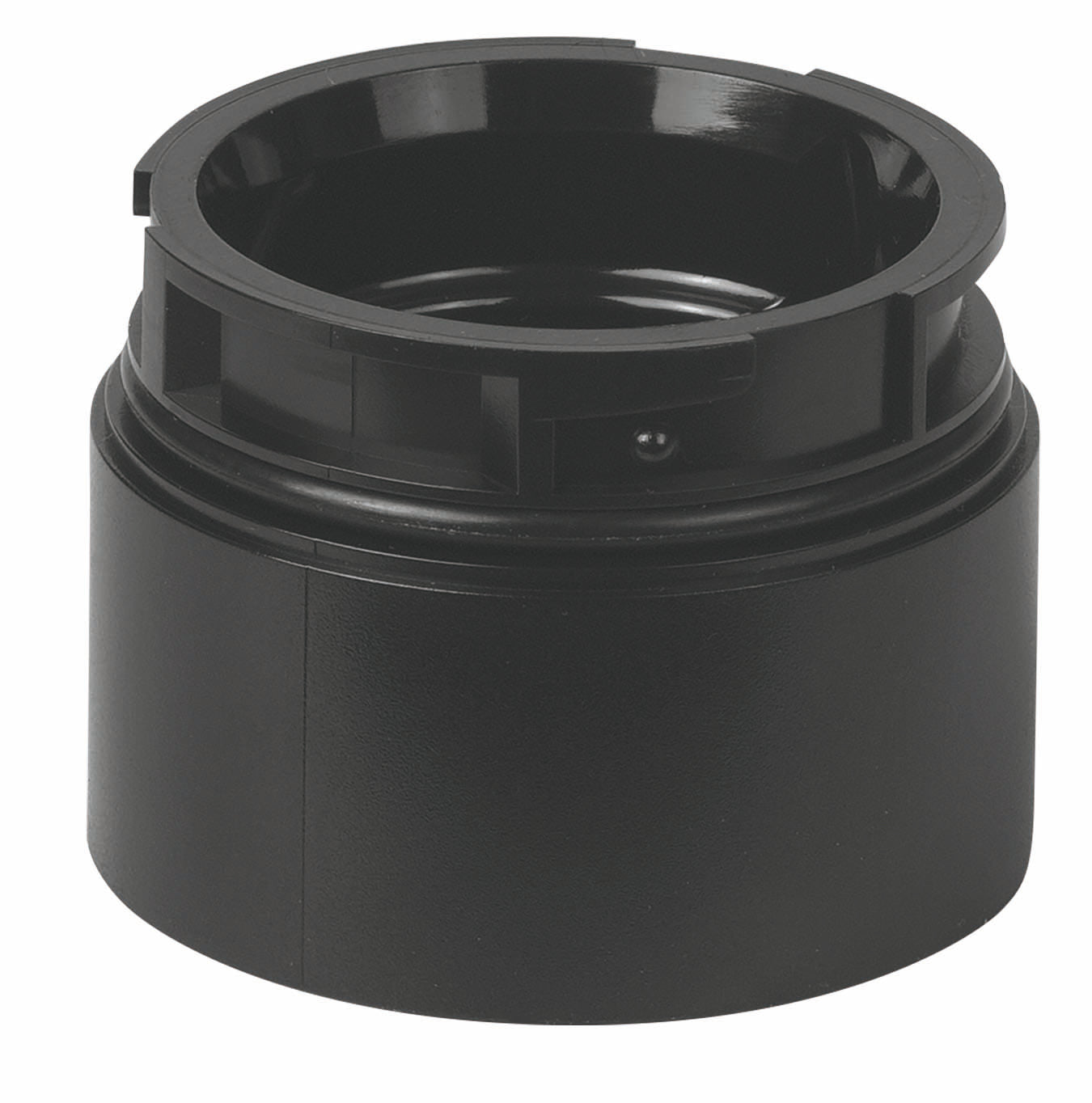

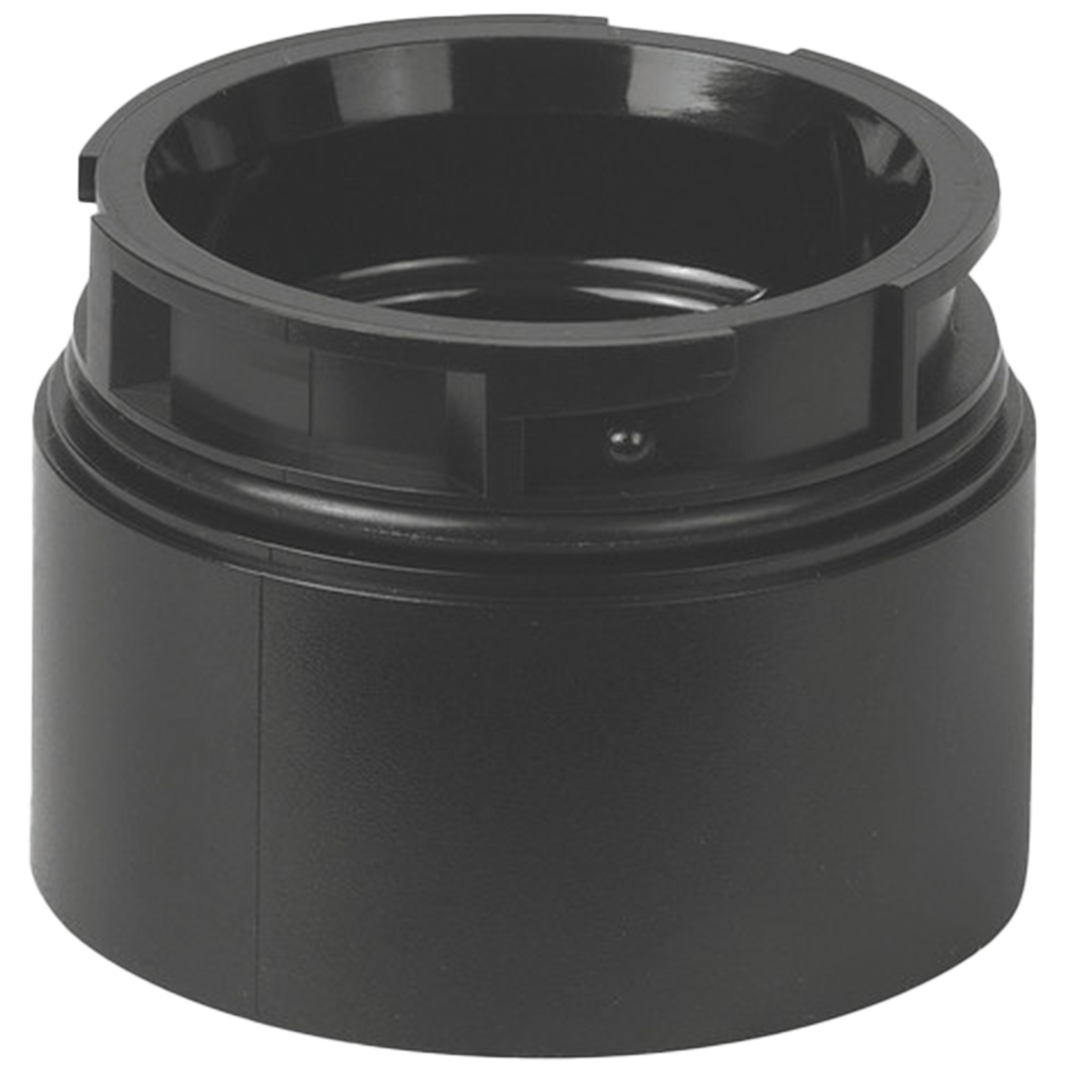

Werma KombiSIGN 40 Adapter for base mount. BWM BK Part number 630.810.00

Werma's KombiSIGN 40 Adapter for base mount. BWM with through-hole for ease of cable entry. The adapter is both base and wall mounting and falls within the protection category of IP66 and IP66K, thus making it a great option when incorporating the adaptor into the system.
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Werma's KombiSIGN 40 Adapter for base mount. BWM with through-hole for ease of cable entry. The adapter is both base and wall mounting and falls within the protection category of IP66 and IP66K, thus making it a great option when incorporating the adaptor into the system.
Specifications
Specifications
x
Height30
Diameter40
MaterialsPC
Housing colourBlack
Protection categoryIP66; IP69K
Cable entryThrough hole
Cable entry maximumd = 9 mm
Type of fixingBase mounting; Wall mounting
Weight with packaging20
Working temperature minimum-30°C
Working temperature maximum+60°C
Product weight20
Pollution degree3
Conforms with CENo
Conforms with RoHS directiveFulfills substance restriction
WEEENo
Conforms with ATEX-directiveNo
Conforms with CCCNo
UL Type RatingType 12
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULcULus
EAC certificate availableNo
Conforms with UKCA (Importer)No
Conforms with AS-INo
Conforms with CMIMNo
Conforms with RoHS CNNo
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
Documents
Documents
x
Download Datasheet
