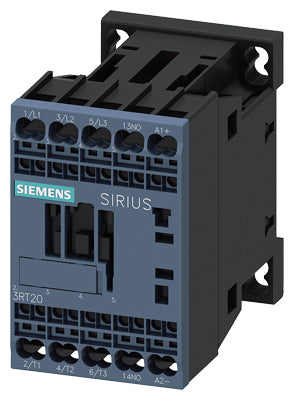

Siemens SIRIUS 3RT Power contactor, size S00, 3-pole, 24VDC, 9A
View on Siemens 📄 Datasheet
Siemens

Siemens SIRIUS 3RT Power contactor, size S00, 3-pole, 24VDC, 9A Part number 3RT2016-2BB41

EAN / Barcode 4011209785366
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The 3RT2 power contactor is designed for switching motors with compact design and high contact reliability.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 9 A
  • Power: 4 kW / 400 V
  • Poles: 3-pole
  • Control voltage: 24 V DC
  • Auxiliary contacts: 1 NO
  • Terminal type: Spring-loaded terminal
  • Size: S00

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • Convincing performance from a compact design.
  • High contact reliability and compatibility with various components in the load feeder.
  • Factory tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready and available in various sizes and performance ranges with AC and DC operation.
  • Devices available with spring-type terminals for fast, maintenance-free, and vibration-proof connections.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules, function modules, and SIRIUS 3RV29 infeed system reduce wiring expenses.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth73 mm
Height70 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V4 kW
Rated operation power NEMA3.677494 kW
Type of electrical connection of main circuitSpring clamp connection
Voltage type for actuatingDC
Width45 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
