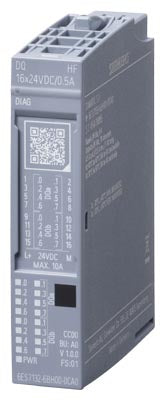

Siemens Simatic ET200 SP Digital output module, 16DO, 24VDC Part number 6ES7132-6BH00-0CA0

Product Overview

The Siemens SIMATIC ET 200SP digital output module (SKU 6ES7132-6BH00-0CA0) is a high-feature output module designed to deliver 16 digital outputs at 24 V DC (0.5 A each) with PNP (source) switching to the positive potential. It is engineered for distributed I/O systems and supports functional diagnostics, configurable parameters and compact mounting.

Key Features

• 16 digital output channels with 24 V DC supply and 0.5 A rated current per channel
• Source output (PNP) switching to positive potential (“+P”) for actuation of loads such as solenoid valves, contactors or indicator lights
• High-feature module including configurable diagnostics per channel (wire-break, short-circuit to L+ or ground) and substitute values support
• Compact width of 15 mm, designed for integration into ET 200SP BaseUnits; space-saving installation
• LED status indicators for each channel plus module diagnostics and power supply status for quick system overview

Technical Specifications

• Product Series: SIMATIC ET 200SP I/O Modules
• Article Number: 6ES7132-6BH00-0CA0
• Designation: DQ 16×24 V DC/0.5 A HF (high feature)
• Supply Voltage (DC): 24 V DC (permissible range: 19.2…28.8 V)
• Output Type: Source output (PNP)
• Number of Outputs: 16 channels
• Rated Current per Channel: 0.5 A
• Total Module Current (max): 8 A (derated by ambient temperature)
• Width (Approx): 15 mm
• Height (Approx): 73 mm
• Depth (Approx): 58 mm
• Weight (Approx): 0.026 kg
• Protection Class: IP20 (for installation in control cabinets)
• Environment (Operating Temp.): –30 °C to +60 °C (horizontal installation)
• Diagnostics Functions: Per-channel diagnostics (wire-break, short-circuit to L+, missing supply), module diagnostics (DIAG LED, channel LEDs)
• Configuration Options: Via TIA Portal (STEP 7) with parameter assignment in RUN, support for PROFINET/PROFIBUS IO configuration

Compliance & Certifications

• Meets Siemens industrial I/O module design and documentation standards
• Supports functional diagnostics in accordance with safety design guidelines (e.g., ISO 13849 / IEC 62061) when applied in system context
• RoHS-compliant and suitable for distributed automation installations

Applications

The 6ES7132-6BH00-0CA0 is ideal for use in distributed automation systems where multiple 24 V DC loads must be switched and monitored — such as actuators, solenoid valves, indicator lamps and contactors. It fits perfectly into the ET 200SP system, providing compact installation, detailed diagnostics and integration with controllers for efficient and safe machine automation.
