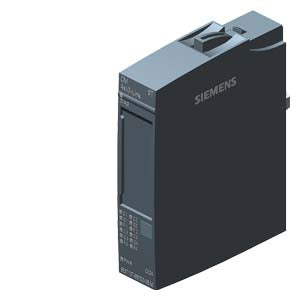

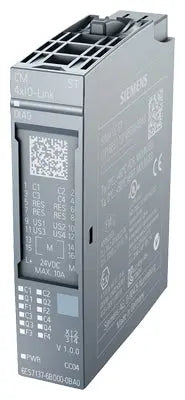

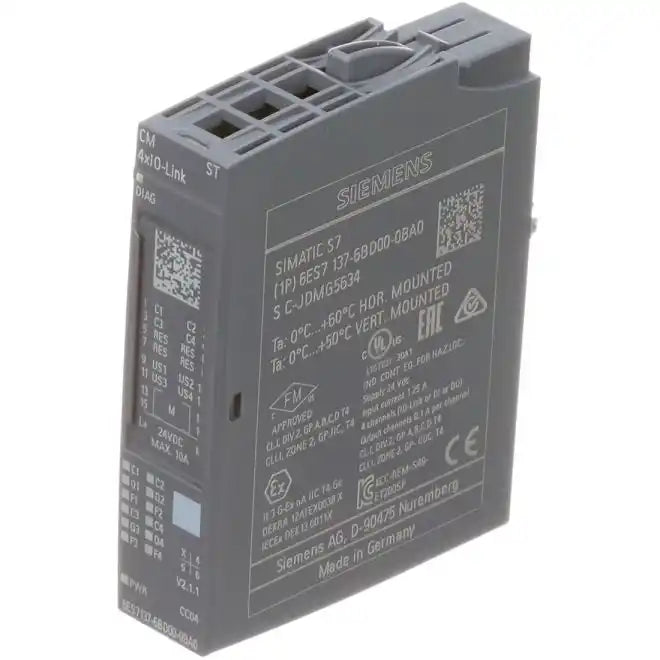

Siemens Simatic ET 200SP Communication module, V1.1

Product Overview

SIMATIC ET 200SP CM 4xIO-Link ST communication module designed as an advanced IO-Link Master supporting version 1.1 protocol. This high-performance module provides seamless integration of up to 4 IO-Link devices within the ET 200SP distributed I/O system. With comprehensive protocol support for IO-Link 1.0 and 1.1, the module enables efficient data exchange and configuration management for intelligent sensors and actuators. Featuring compact design and robust construction, it's optimized for installation in IP20 control cabinet environments.

Key Features

• 4 IO-Link ports for connecting intelligent devices
• IO-Link Master V1.1 protocol support with backward compatibility
• Simultaneous control of all 4 ports for maximum efficiency
• Multiple transmission rates: 4.8 kBaud (COM1), 38.4 kBaud (COM2), 230.4 kBaud (COM3)
• Integrated 24V DC encoder supply for connected devices
• Port-specific network load calculation for optimization
• Hot-swappable design for maintenance without system shutdown
• Comprehensive diagnostic and status monitoring capabilities

Technical Specifications

• Article Number: 6ES7137-6BD00-0BA0
• Module Type: CM 4xIO-Link ST communication module
• IO-Link Ports: 4 ports (all simultaneously controllable)
• Protocol Support: IO-Link 1.0 and 1.1
• Transmission Rates: 4.8 kBaud (COM1), 38.4 kBaud (COM2), 230.4 kBaud (COM3)
• Color Code: CC04
• Net Weight: 0.039 kg

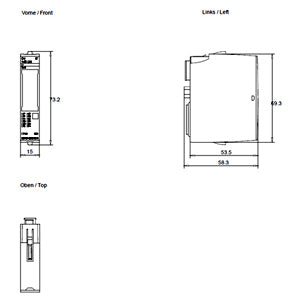

• Packaging Dimensions: 6.90 x 7.80 x 2.30 cm
• Quantity Unit: 1 Piece
• EAN: 4025515082095
• UPC: 887621086992
• Country of Origin: Germany

IO-Link Specifications

• Number of Ports: 4
• Simultaneously Controllable: 4 ports
• IO-Link Protocol: 1.0 and 1.1 support
• Minimum Cycle Time: Variable based on device configuration
• Process Data Size: Input/output per port and module configurable
• Master Backup: Configuration without S7-PCT supported
• Cable Length: Maximum 20m (unshielded/shielded)

Power Supply & Outputs

• Supply Voltage: 20.4V DC (19.2V typical, 20.5V for IO-Link devices)
• Output Current: 200mA per channel maximum
• 24V Encoder Supply: Available for connected devices
• Short-Circuit Protection: Integrated protection for all outputs
• Power Loss: Optimized for efficient operation

System Requirements

• System Compatibility: SIMATIC ET 200SP distributed I/O system
• Base Unit: BU type A0 required
• Protection Rating: IP20 for control cabinet installation
• Mounting: Standard ET 200SP rail mounting
• Configuration: TIA Portal integration for setup and diagnostics

Product Status

• Availability: Currently in production and available
• Firmware: V2.2 with update capability

Compliance & Certifications

• Export Control: AL: N / ECCN: 9N9999
• RoHS Compliance: Since 18.01.2013
• WEEE (2012/19/EU): Take-back obligation applicable
• Product Class: A - Standard product which is a stock item, returnable within guidelines
• ATEX: Gas-Ex-Protection Category 3G certified

Applications

• Industrial automation with intelligent sensors and actuators
• Manufacturing systems requiring advanced device parameterization
• Process control with IO-Link enabled field devices
• Quality control systems with smart sensor integration
• Material handling systems with intelligent components
• Building automation with IO-Link compatible devices
• Machine tool applications with advanced sensor networks
• Packaging machinery with intelligent actuator control

Advanced Features

• Network Optimization: Port-specific calculation of network load
• Online Diagnostics: Real-time scan and verification of connected systems
• Device Management: Automatic device identification and configuration
• Parameter Backup: Master backup functionality for device parameters
• Status Monitoring: Comprehensive LED indicators for all ports and system status
• Error Detection: Advanced diagnostic capabilities with detailed error reporting

Diagnostic Capabilities

• LED Indicators: Individual status LEDs for each port (Cn, Qn, Fn)
• System Status: General diagnostic LED (DIAG) and power supply LED (PWR)
• Error Codes: Comprehensive error mapping for troubleshooting
• Alarm System: Integration with SIMATIC diagnostic system
• Online Monitoring: Real-time device status and performance monitoring

Installation & Configuration

• Simple Integration: Direct mounting on ET 200SP system
• Color-Coded Design: CC04 color coding for easy identification
• Plug-and-Play: Automatic device recognition and configuration
• TIA Portal Support: Full integration with SIMATIC engineering tools
• Parameter Management: Comprehensive device parameter handling
