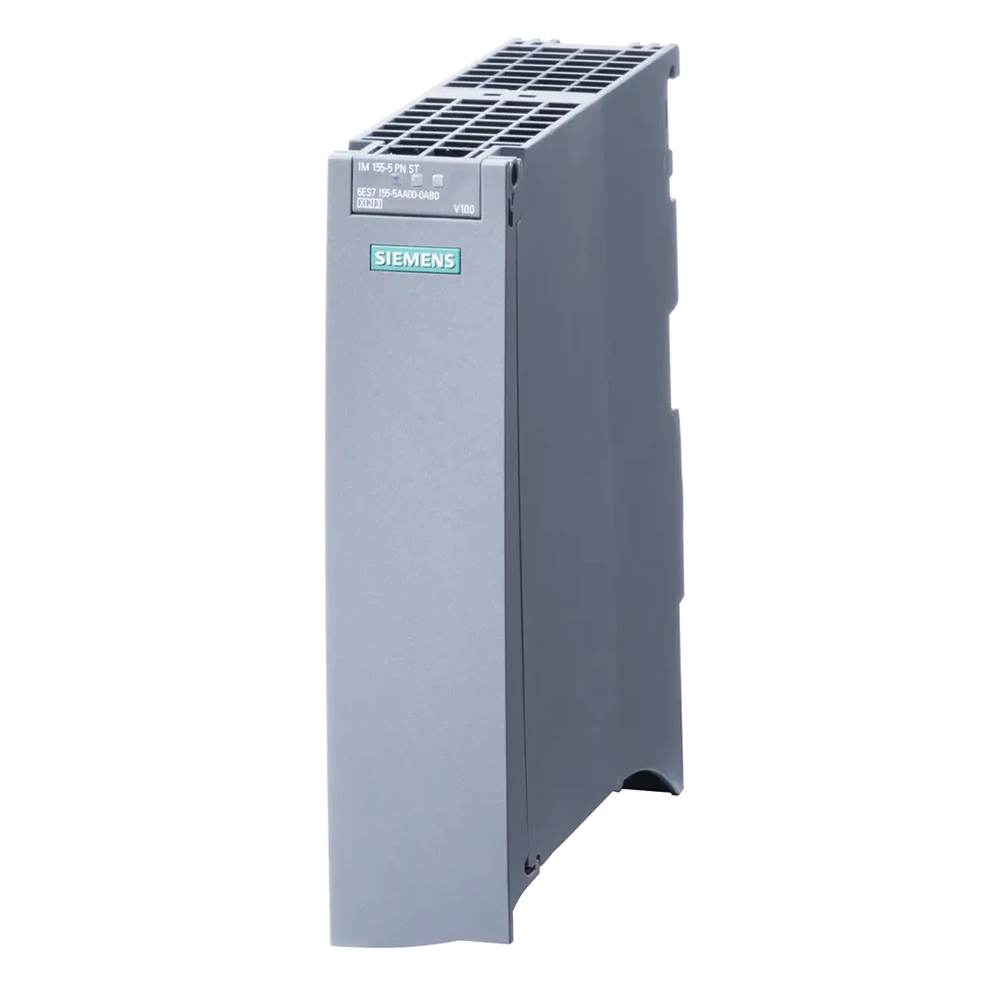

Siemens SIMATIC ET 200MP PROFINET IO device Interface module Part number 6ES7155-5AA00-0AC0

EAN / Barcode 4047623402237
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - communication module
ETIM Class Fieldbus, decentr. periphery - communication module
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SIMATIC ET 200MP. PROFINET IO device Interface module IM 155-5 PN HF, for ET 200MP electronic modules; Up to 12 IO modules without PS; Up to 30 IO modules with additional PS; Integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; Isochronous mode FW update; I&M0...3; Prioritized startup, S2 redundancy; Shared device with 4 controllers Suitable for operation with active backplane bus (FW V4.4 or higher)

Technical Specifications

Degree of protection (IP)IP20
Depth129 mm
Height147 mm
Rail mounting possibleYes
Supply voltage DC19.2 V
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeYes
Supporting protocol for TCP/IPYes
System accessoryYes
Voltage type (supply voltage)DC
Width35 mm
With potential separationYes
Part Width15 mm
Part Height15 mm
Part Depth4 mm
Weight359 g
Country of OriginGermany
