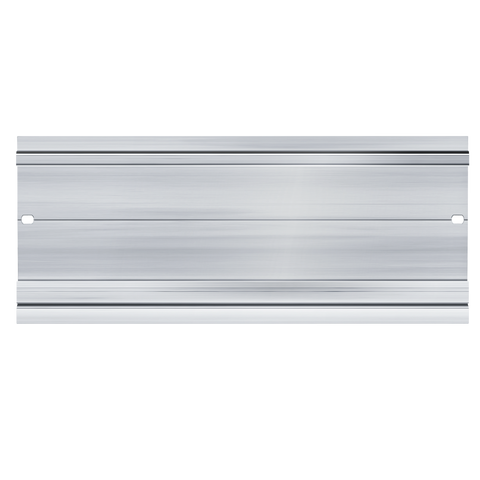

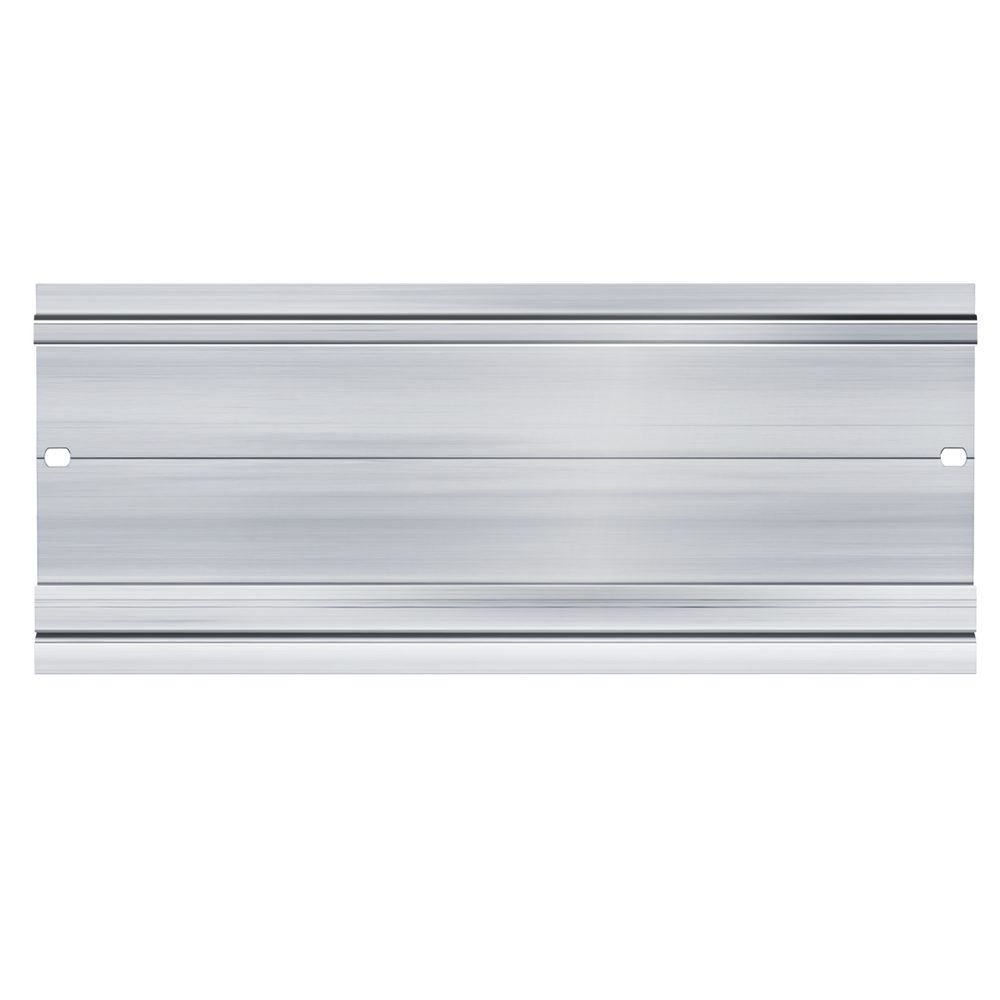

Siemens Simatic S7-1500 Mounting rail, 160mm

Product Overview

The Siemens 6ES7590-1AB60-0AA0 is a compact mounting rail designed for SIMATIC S7-1500 automation systems, featuring a 160mm (6.3 inch) aluminum profile with integrated grounding screw and built-in DIN rail functionality. This space-efficient mounting solution provides secure installation foundation for S7-1500 modules in compact control cabinets while offering additional mounting capability for auxiliary components such as terminals, automatic circuit breakers, and relays, making it ideal for small-scale automation installations and distributed control applications.

Key Features

• Compact Design: 160mm (6.3 inch) profile length optimized for small-scale and distributed automation installations
• Integrated Grounding: Built-in grounding screw ensures proper electrical safety and EMC compliance
• Dual-Purpose Functionality: Serves as both S7-1500 module mounting rail and integrated DIN rail for auxiliary components
• Aluminum Construction: High-quality aluminum profile with galvanic/electrolytic zinc plating for durability and corrosion resistance
• Space-Efficient: Compact dimensions ideal for space-constrained control cabinets and distributed installations
• Professional Installation: Single-screw module attachment for secure and efficient mounting

Technical Specifications

• Length: 160mm (6.3 inches)
• Height: 155mm
• Depth: 16mm
• Material: Aluminum with galvanic/electrolytic zinc plating
• Material Thickness: 3mm
• Drill Hole Distance: 140mm (centrically)
• Surface Protection: Galvanic/electrolytic zinc plated
• Weight: 0.367 kg
• Packaging Dimensions: 16.60 x 21.20 x 2.70 cm
• Country of Origin: Germany
• EAN: 4025515079385
• UPC: 887621139551

Applications Essential for compact control cabinet installations housing small-scale SIMATIC S7-1500 automation systems including distributed control nodes, machine control panels, compact process control systems, building automation controllers, and edge control applications requiring space-efficient mounting infrastructure with integrated auxiliary component support for terminals, circuit breakers, and protective devices.

System Integration Benefits

• Space Optimization: Compact design maximizes control cabinet space utilization in limited-space applications
• Installation Efficiency: Single-screw module attachment reduces installation time and simplifies maintenance
• Electrical Safety: Integrated grounding screw ensures proper PE connection and electrical safety compliance
• Mechanical Stability: Robust aluminum construction provides secure mounting foundation despite compact size
• Flexible Configuration: Supports custom length cutting for specific compact cabinet requirements
• Cost-Effective Solution: Optimal choice for small-scale installations requiring professional mounting infrastructure

SIMATIC S7-1500 Integration Specifically designed for compact SIMATIC S7-1500 and ET 200MP module installations, providing stable mechanical foundation and proper electrical grounding in space-constrained environments. The mounting rail enables secure attachment of CPU modules, I/O modules, and power supplies while offering integrated DIN rail functionality for control cabinet auxiliary components, ensuring comprehensive system organization in compact installations.

Compliance & Certifications

• RoHS Compliant: Since 25.02.2013, meets substance restriction requirements
• WEEE Compliance: No take-back obligation required
• REACH Regulation: No SVHC (Substances of Very High Concern) currently identified
• Export Control: AL: N / ECCN: N
• Product Class: Class A standard product with return capability

Important Note This product is currently active (PLM Status: PM300) and available for immediate delivery. The compact mounting rail is designed for direct control cabinet installation and can be customized to specific lengths as required. Proper grounding terminals must be used for optimal electrical connection in compact installations.

Download existing graphical data for this product:

• Product Datasheet

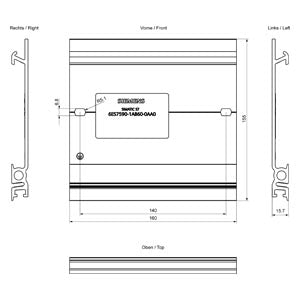

• Dimensional Drawing
