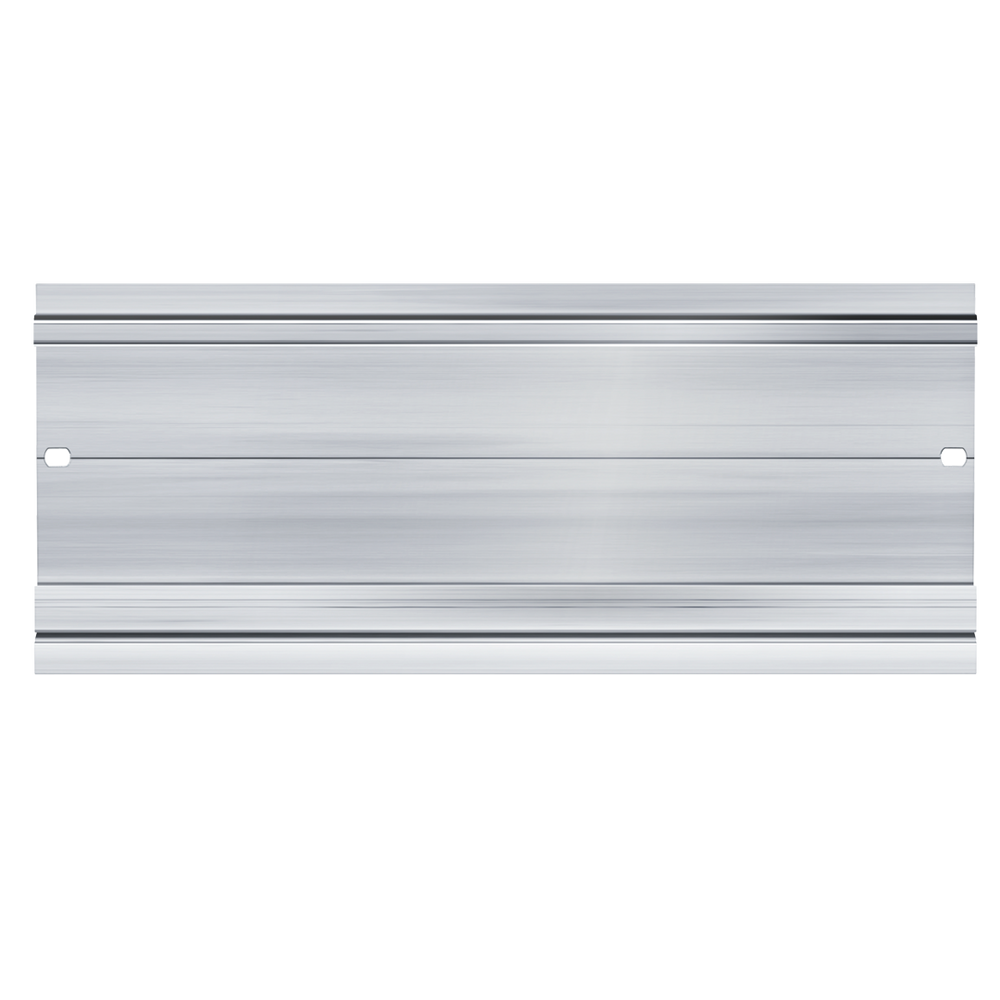

Siemens Simatic S7-1500 Mounting rail, 482.6mm Part number 6ES7590-1AE80-0AA0

EAN / Barcode 4025515079361
Product Type Control Panel
Product Class Mounting rail
Category HMI's & PLC's
Sub-category Accessories
ETIM Class Mounting rail
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

SIMATIC S7-1500, mounting rail 482.6 mm (approx. 19 inch); incl. grounding screw, integrated DIN rail for mounting of incidentals such as terminals, automatic circuit breakers and relays SIMATIC DIN rails are available in diverse lengths for direct installation in control cabinets or for cutting into individual lengths. The appropriate grounding terminals must be used for proper grounding connection.

Technical Specifications

Drill hole distance centrically466 mm
Height155 mm
Length482 mm
MaterialAluminium
Material thickness3 mm
Surface protectionGalvanic/electrolytic zinc plated
Part Width15 mm
Part Height53 mm
Part Depth2 mm
Weight1038 g
Country of OriginGermany
