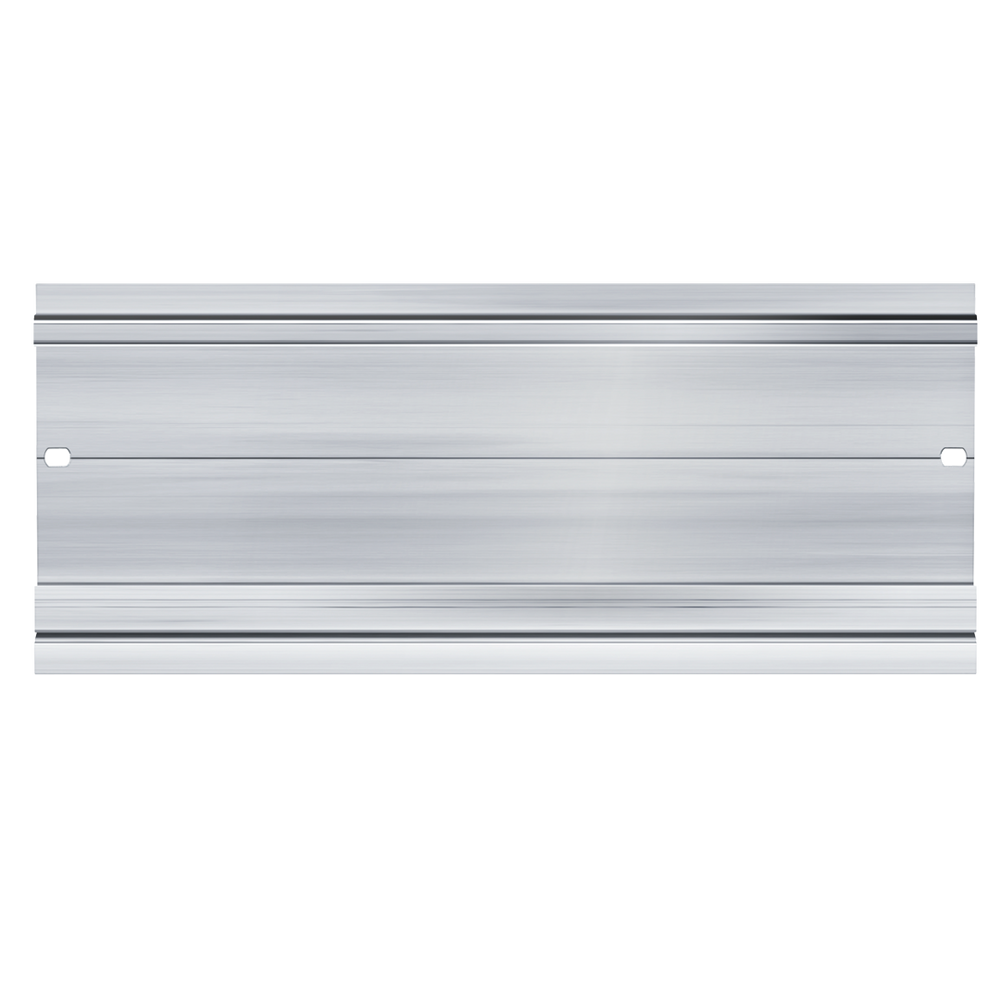

Siemens Simatic S7-1500 Mounting rail, 530mm

Product Overview

 The Siemens 6ES7590-1AF30-0AA0 is a precision-engineered mounting rail for SIMATIC S7-1500 automation systems, featuring a 530mm (20.9 inch) aluminum profile with integrated grounding screw and built-in DIN rail functionality. This robust mounting solution provides secure installation foundation for S7-1500 modules while offering additional mounting capability for incidental components such as terminals, automatic circuit breakers, and relays, enabling comprehensive control cabinet organization and professional system integration.

Key Features

• Optimal Length: 530mm (20.9 inch) profile length ideal for medium-scale automation installations
• Integrated Grounding: Built-in grounding screw ensures proper electrical safety and EMC compliance
• Dual-Purpose Design: Serves as both S7-1500 module mounting rail and integrated DIN rail for auxiliary components
• Aluminum Construction: High-quality aluminum profile with galvanic/electrolytic zinc plating for durability
• Universal Compatibility: Suitable for all SIMATIC S7-1500 and ET 200MP modules
• Professional Installation: Single-screw module attachment for secure and efficient mounting

Technical Specifications

• Length: 530mm (20.9 inches)
• Height: 155mm
• Depth: 16mm
• Material: Aluminum with galvanic/electrolytic zinc plating
• Material Thickness: 3mm
• Drill Hole Distance: 500mm (centrically)
• Surface Protection: Galvanic/electrolytic zinc plated
• Weight: 1.205 kg
• Packaging Dimensions: 16.00 x 58.00 x 2.70 cm
• Country of Origin: Germany
• EAN: 4025515079378
• UPC: 887621139575

Applications Essential for professional control cabinet installations housing SIMATIC S7-1500 automation systems including manufacturing control panels, process control cabinets, building automation systems, machine control enclosures, and distributed I/O installations requiring secure mounting infrastructure with integrated auxiliary component support for terminals, circuit breakers, and protective devices.

System Integration Benefits

• Space Optimization: Integrated DIN rail eliminates need for separate mounting rails, maximizing cabinet space utilization
• Installation Efficiency: Single-screw module attachment reduces installation time and labor costs
• Electrical Safety: Integrated grounding screw ensures proper PE connection and electrical safety compliance
• Mechanical Stability: Robust aluminum construction provides secure mounting foundation for critical automation components
• Flexible Configuration: Supports custom length cutting for specific cabinet requirements
• Professional Appearance: Clean, organized installation with integrated auxiliary component mounting

SIMATIC S7-1500 Integration Designed specifically for SIMATIC S7-1500 and ET 200MP module installation, providing stable mechanical foundation and proper electrical grounding. The mounting rail enables secure attachment of CPU modules, I/O modules, communication processors, and power supplies while offering integrated DIN rail functionality for control cabinet auxiliary components, ensuring comprehensive system organization and professional installation standards.

Compliance & Certifications

• RoHS Compliant: Since 25.02.2013, meets substance restriction requirements
• WEEE Compliance: No take-back obligation required
• REACH Regulation: No SVHC (Substances of Very High Concern) currently identified
• Export Control: AL: N / ECCN: N
• Product Class: Class A standard product with return capability

Important Note This product is currently active (PLM Status: PM300) and available for immediate delivery. The mounting rail is designed for direct control cabinet installation and can be customized to specific lengths as required. Proper grounding terminals must be used for optimal electrical connection.

Download existing graphical data for this product:

• Product Datasheet

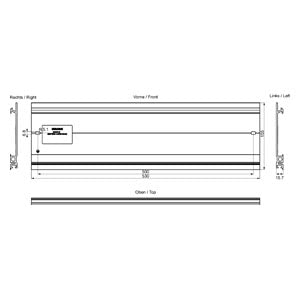

• Dimensional Drawing
