Siemens Simatic DP, Terminal module for ET 200S, 15mm width, spring
View on Siemens 📄 Datasheet
Siemens

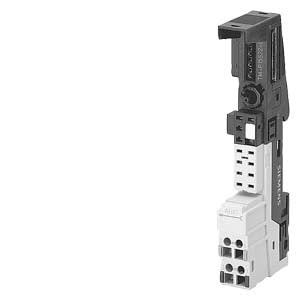

Siemens Simatic DP, Terminal module for ET 200S, 15mm width, spring Part number 6ES7193-4CC30-0AA0

EAN / Barcode 4025515059936
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - mounting frame
ETIM Class Fieldbus, decentr. periphery - mounting frame
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

This terminal module TM-P15C23-A1 is for ET 200S power modules, featuring spring-type terminals and offering two sets of terminal connections for auxiliary supply. It is designed for industrial use with a compact 15 mm width.

Technical Specifications

Depth43 mm
Height132 mm
Height (mm)132mm
Input voltage AC 50 Hz120 V
Input voltage AC 60 Hz120 V
Input voltage DC48 V
Max. input current AC 50 Hz10 A
Max. input current AC 60 Hz10 A
Max. input current DC10 A
Max. output current AC 50 Hz10 A
Max. output current AC 60 Hz10 A
Max. output current DC10 A
Number of slots2
Output voltage AC 50 Hz120 V
Output voltage AC 60 Hz230 V
Output voltage DC24 V
Part Depth (mm)43mm
Part Width (mm)15mm
Rail mounting possibleYes
System accessoryYes
Type of output voltageAC/DC
Type of voltage (input voltage)AC/DC
Wall mounting/direct mountingYes
Width15 mm
With pluggable modules, othersYes
Weight650g
Country of OriginGermany
