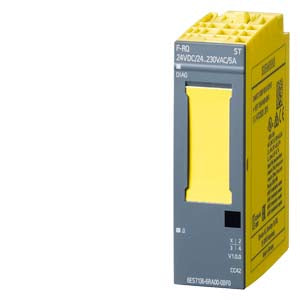

Siemens Simatic DP, Electronics module, 24VDC/24-230VAC, 5A Part number 6ES7136-6RA00-0BF0

Product Overview

The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC ET 200SP digital output module with a **single relay output (F-RQ)**. It provides one relay output channel with two normally open contacts, suitable for switching both DC and AC loads. With a compact 20 mm module width and a total output current rating of 5 A, this module integrates into the ET 200SP distributed I/O system to extend automation capabilities with versatile output switching performance. Its robust design and industrial compatibility make it ideal for machine and system control applications in distributed automation environments.

Key Features

• SIMATIC ET 200SP digital output module with relay output
• 1 relay output channel with 2 normally open (2 NO) contacts
• Switches loads at 24 V DC and 24 … 230 V AC
• Total output current rating: 5 A
• Compact 20 mm overall module width for high-density I/O installations
• Designed for integration within the ET 200SP distributed I/O system
• Industrial-grade construction for reliable switching performance

Technical Specifications

• Article Number: 6ES7136-6RA00-0BF0
• Product Family: SIMATIC ET 200SP digital output modules
• Module Type: F-RQ digital output (relay) module
• Number of Outputs: 1 relay output (2 NO contacts)
• Rated Output Current: 5 A total
• Load Voltage Range: 24 V DC and 24 … 230 V AC
• Module Width: 20 mm
• Mounting: ET 200SP base unit required
• Operating Temperature Range: Industrial automation rated
• Module Identification: Color code for F-RQ output modules

Compliance & Standards

• Designed for integration in the SIMATIC ET 200SP distributed I/O system
• Suitable for industrial automation control applications
• Meets Siemens standards for digital output relay modules

Applications

The Siemens 6ES7136-6RA00-0BF0 digital output relay module is ideal for extending the output switching capability of ET 200SP systems in factory and process automation. It is used to control actuators, signal devices, and other field elements requiring relay switching at AC or DC levels, supporting machine safety, control logic, and distributed automation tasks in industrial environments.
